KI Pumps & Systems, Inc.  |  SKU: LGL1.25

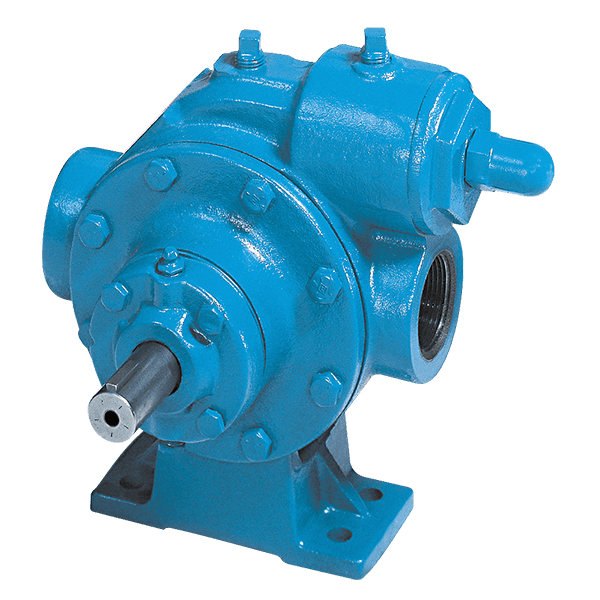

LGL1.25 LP gas Sliding Vane Pump

$ 2,574.00 $ 2,860.00

Delivery and Shipping

We ship in stock items same day. If it needs to be ordered we will ship it out to you the day it arrives.

If you have any questions you can reach us at (262) 646.4500 or click here

Description

These durable motor speed pumps offer capacities from 9 to 35 U.S. gpm (34-132 L/ min), and are ideal for motor fueling, multiple-station cylinder filling and a variety of small transfer jobs. The LGL models are designed for foot mounting to a common base-plate. The LGLF models are fitted with an integral bracket and coupling for direct flange mounting to a NEMA C-face motor. This bracket also allows the pump body to be rotated to simplify hookup to piping systems.

Available with 1.25 or 1.5-inch NPT tapped ports, all models are equipped with an internal relief valve, and a replaceable casing liner and end discs for easy rebuilding of the pumping chamber if ever necessary. The LGRLF 1.25-inch model features a special liner, which offers lower flow rates than the LGL 1.25-inch pump. In addition, these pumps feature cavitation suppression liners to reduce noise, vibration and wear.

Standard construction materials for these models include Buna-N Mechanicalanical seals and Duravanes for handling both LP gas and anhydrous ammonia. Maximum differential pressure is 150 psi (10.34 Bar) for all models.

OEM by Blackmer PSG Dover is provided by KI Pumps of Waukesha, WI, which is acknowledged worldwide as the leading supplier of positive displacement and sliding vane pumps and their components.

Our Collections

Frequently Asked Questions

What are the main uses of the LGL1.25 LP gas sliding vane pump?
The LGL1.25 LP gas sliding vane pump is ideal for motor fueling, multi-station cylinder filling, and various small transfer jobs, making it a versatile choice for handling LP gas in different industrial applications.
What are the capacity options available for the LGL1.25 LP gas pump?
This durable pump offers capacities ranging from 9 to 35 U.S. gallons per minute (34-132 liters per minute), allowing you to select the right size for your specific needs.
How is the LGL1.25 LP gas pump mounted and installed?
The LGL models are designed for foot mounting on a common base-plate, while the LGLF models feature an integral bracket and coupling for direct flange mounting to a NEMA C-face motor, simplifying installation and setup.
What features contribute to the ease of maintenance of the LGL1.25 LP gas pump?
The pump includes a replaceable casing liner and end discs, enabling easy rebuilding of the pumping chamber if necessary, along with an internal relief valve for safety and durability.
Are the materials used in the LGL1.25 LP gas pump suitable for handling LP gas and other chemicals?
Yes, the pump is constructed with Buna-N mechanical seals and Duravanes, which are suitable for handling LP gas and anhydrous ammonia, ensuring reliable operation in demanding environments.
