KI Pumps & Systems, Inc.  |  SKU: XB1C

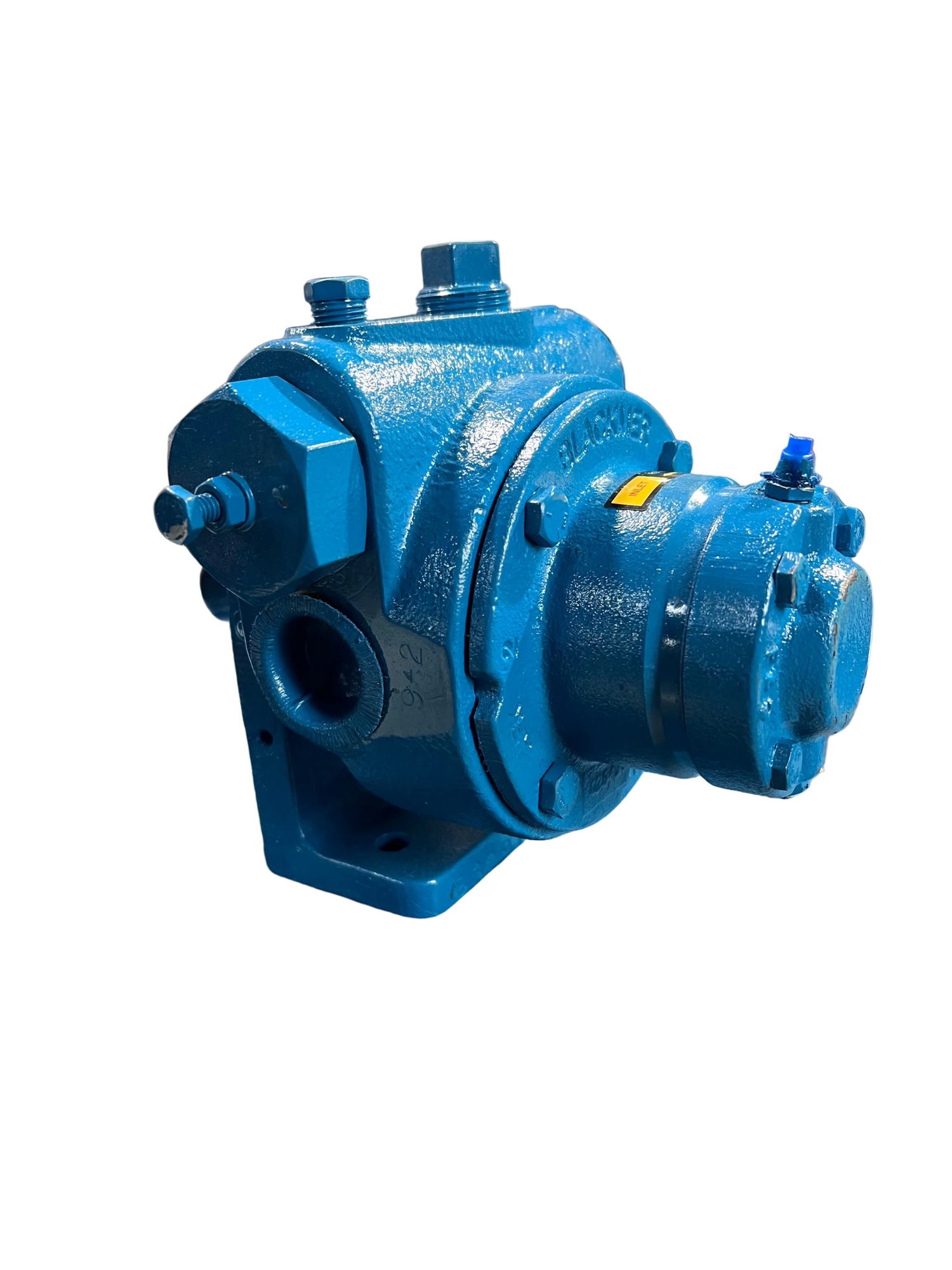

XB1C Sliding Vane Pump

$ 2,506.50 $ 2,785.00

Delivery and Shipping

We ship in stock items same day. If it needs to be ordered we will ship it out to you the day it arrives.

If you have any questions you can reach us at (262) 646.4500 or click here

Description

Shock-Resistant Ductile-Iron Pump for Tight Installation Requirements

The X1 Series, part of the Iron Line of sliding vane pumps, consists of thermal shock-resistant ductile iron construction with external ball bearings isolated from the pumpage by mechanical seals, designed to couple directly to standard electric motors. This pump's design meets tight installation requirements. XB1 and XB1P models are base-mounted for portable or pad installations. XF1 and XF1P types are fitted with an integral bracket for direct mounting to NEMA C-face motor.

The X1 Series have 1-in NPT tapped ports and offer flow capacities in the range of 5 to 14 GPM (19-53 L/min) and operate at speeds up to 1,750 rpm, handling fluid viscosities up to 100 SSU (20 cP). XF1P and XB1P models offer 50% greater capacity than the XF1 and XB1 models. The integral dual-acting relief valve returns excess flow to the tank if equipped with a return-to-tank pipe.

Our Collections

Frequently Asked Questions

What are the main advantages of the XB1C Sliding Vane Pump for industrial applications?
The XB1C Sliding Vane Pump features shock-resistant ductile iron construction and is designed for tight installation requirements, making it durable and reliable for various industrial uses. Its ability to handle fluid viscosities up to 100 SSU and operate at speeds up to 1,750 rpm ensures efficient performance.
How does the installation process differ between the XB1C models?
The XB1 and XB1P models are base-mounted, suitable for portable or pad installations, while the XF1 and XF1P models come with an integral bracket for direct mounting to NEMA C-face motors, providing flexibility in installation options.
What is the flow capacity of the XB1C Sliding Vane Pump, and what fluids can it handle?
The XB1C Sliding Vane Pump offers flow capacities ranging from 5 to 14 GPM (19-53 L/min). It is capable of handling fluids with viscosities up to 100 SSU (20 cP), making it versatile for various pumping tasks.
Are there any safety features included in the XB1C Sliding Vane Pump?
Yes, the pump is equipped with an integral dual-acting relief valve that returns excess flow to the tank, providing a safety mechanism to prevent overpressure and protect the pump and system.
Can the XB1C Sliding Vane Pump be used with standard electric motors?
Absolutely, the XB1C pump is designed to couple directly to standard electric motors, simplifying installation and ensuring compatibility with common motor setups.
