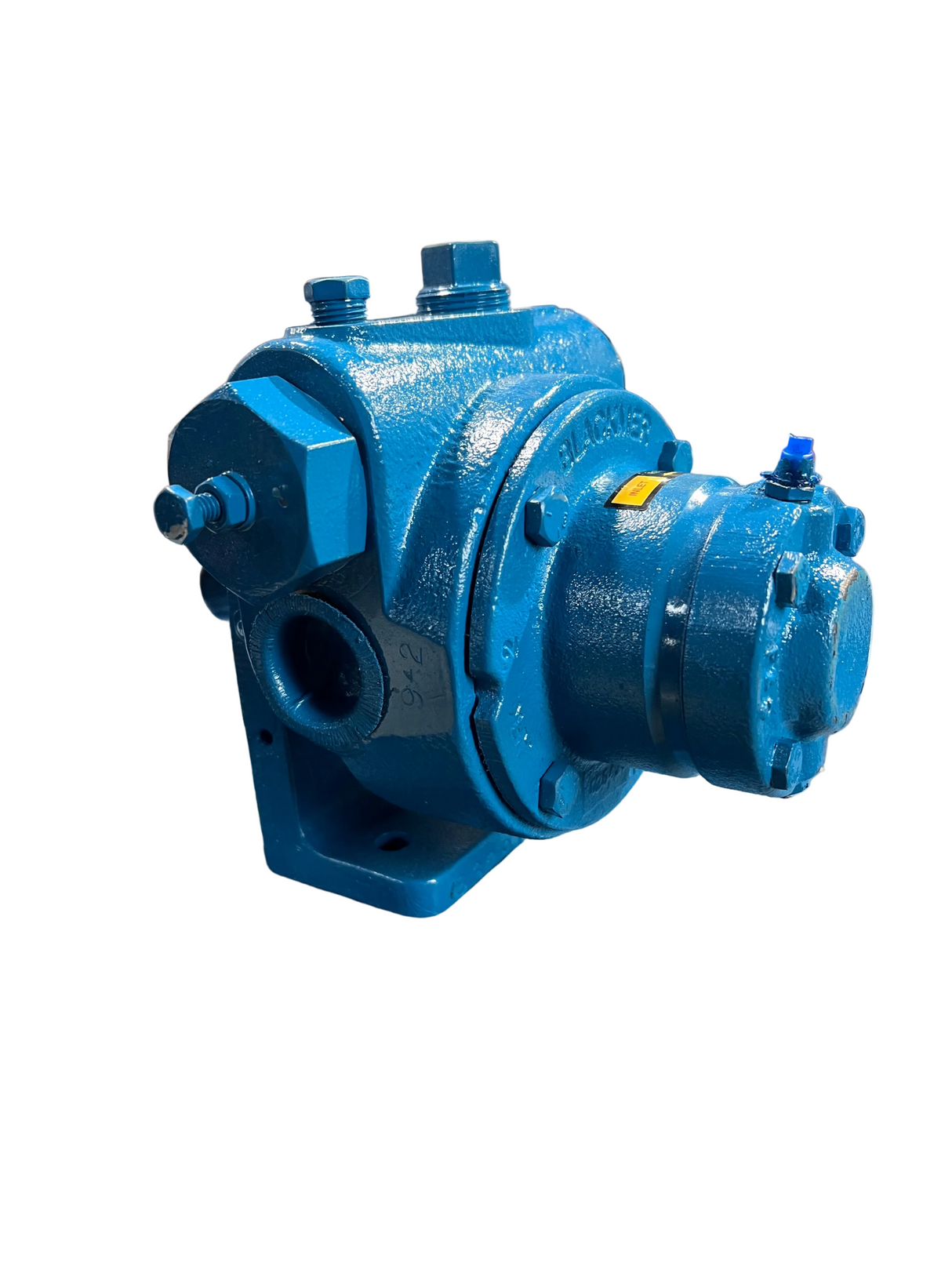

X Series Sliding Vane Pumps

$ 0.00
Size or Model

X Series Sliding Vane Pumps - XB1C Ships in 1-2 Weeks or Special Order

Delivery and Shipping

We ship in stock items same day. If it needs to be ordered we will ship it out to you the day it arrives.

If you have any questions you can reach us at (262) 646.4500 or click here

Description

The X Series Sliding Vane Pumps are a line of space-efficient, reliable pump solutions designed for applications requiring compact installation. Manufactured by Blackmer PSG Dover through KI Pumps of Waukesha, WI, these pumps feature a thermal shock-resistant ductile iron construction with external ball bearings isolated by mechanical seals to enhance durability. The pumps are designed for direct coupling to standard electric motors, facilitating straightforward integration into various systems.

Models and Installation:

  • XB1 and XB1P Models: Base-mounted designs suitable for portable or fixed pad installations.
  • XF1 and XF1P Models: Include an integral bracket for direct mounting to NEMA C-face motors.

Specifications:

  • Port Size: 1-inch NPT threaded ports for ease of connection.
  • Flow Capacities: Range from 5 to 14 gpm (19-53 L/min), depending on model and conditions.
  • Operating Speed: Up to 1,750 rpm, suitable for various process requirements.
  • Fluid Viscosity: Capable of handling fluids with viscosities up to 100 SSU (20 cP).
  • Capacity Variants: XF1P and XB1P models provide approximately 50% greater flow capacity compared to XF1 and XB1 models.

Features:

  • External Mechanical Seals: Isolate the ball bearings to prevent fluid leakage and enhance pump lifespan.
  • Dual-Acting Relief Valve: Integrated to control flow, with the capability to return excess fluid to the tank when connected via a return pipe.

Use Cases:

  • Ideal for applications where space is limited, requiring a compact pump with reliable performance, such as in chemical transfer, process fluid handling, or leak testing setups.
  • Suitable for budget-conscious projects demanding durable pump construction with low maintenance needs.
  • Designed for use by OEMs and system integrators seeking space-saving, efficient sliding vane pumps for tight installation environments.

Included in the Box:

  • Complete pump assembly with mechanical seals and external ball bearings.
  • Optional integral mounting brackets (XF1 and XF1P models).
  • Note: Electrical motor not included; must be purchased separately.

Care and Maintenance:

  • Periodic inspection of seals and bearings recommended to ensure longevity.
  • Clean exterior surfaces with a damp cloth; avoid harsh chemicals that could damage the ductile iron or seals.
  • Warranty details vary; consult manufacturer documentation for specific coverage and service instructions.

Our Collections

Frequently Asked Questions

What are the main benefits of choosing the X1 Sliding Vane Pumps Blackmer for my fluid handling needs?
The X1 Sliding Vane Pumps Blackmer are known for their durable construction, space-saving design, and reliable performance, making them ideal for various applications. Their thermal shock-resistant ductile iron construction ensures longevity, while their compact size allows for easy installation in tight spaces. These features support efficient fluid transfer for many industrial and commercial uses.
How do the different models of the X1 Series, like XB1, XF1, and their positive capacity variants, differ in terms of installation and performance?
The XB1 and XB1P models are designed for base-mounted, portable, or fixed pad setups, while the XF1 and XF1P models include integral brackets for direct mounting to NEMA C-face motors, providing flexible installation options. The positive capacity variants (XB1P and XF1P) deliver about 50% greater flow, making them suitable for applications requiring higher throughput. Performance-wise, all models operate up to 1,750 rpm with flow capacities ranging from 5 to 14 GPM, depending on the model.
