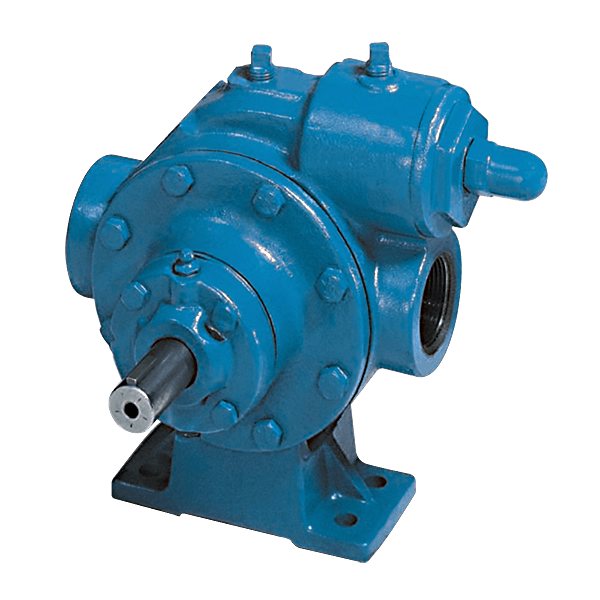

LGRL1.25 LGL Sliding Vane Pump

The Blackmer LGRL1.25 LGL pumps offer capacities from 9 to 35 U.S. gpm (34-132 L/min), and are ideal for motor fueling, multiple-station cylinder filling, and a variety of small transfer jobs. The LGL models are designed for foot mounting to a common base plate.

The LGLF models are fitted with an integral bracket and coupling for direct flange mounting to a NEMA C-face motor. This bracket also allows the pump body to be rotated to simplify hookup to piping systems.

Available with 1.25 or 1.5-inch NPT tapped ports, all models are equipped with an internal relief valve, and a replaceable casing liner and end discs for easy rebuilding of the pumping chamber if ever necessary. The LGRLF 1.25-inch model features a special liner, which offers lower flow rates than the LGL 1.25-inch pump. In addition, these pumps feature cavitation suppression liners to reduce noise, vibration, and wear.

Standard construction materials for these models include Buna-N Mechanicalanical seals and Duravanes for handling both LP gas and anhydrous ammonia. Maximum differential pressure is 150 psi (10.34 Bar) for all models.

OEM by Blackmer PSG Dover is provided by KI Pumps of Waukesha, WI, which is acknowledged worldwide as the leading supplier of positive displacement and sliding vane pumps and their components.
