KI Pumps & Systems, Inc.  |  SKU: XF1C

XF1C Sliding Vane Pump

$ 2,506.50 $ 2,785.00

Delivery and Shipping

We ship in stock items same day. If it needs to be ordered we will ship it out to you the day it arrives.

If you have any questions you can reach us at (262) 646.4500 or click here

Description

Product Identity

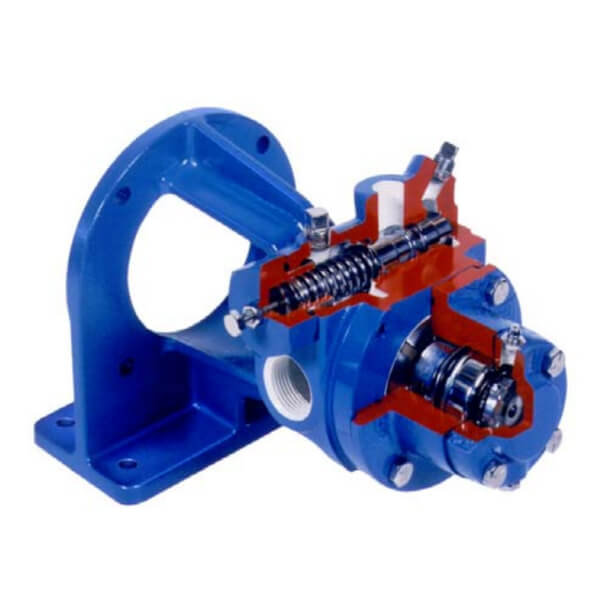

The XF1C Sliding Vane Pump is a shock-resistant, ductile iron pump designed for applications requiring tight installation constraints. It is part of the X1 Series, known for durability and reliability in fluid transfer tasks.

Materials

The pump features thermal shock-resistant ductile iron construction, ensuring high durability and resistance to temperature fluctuations. External ball bearings are incorporated to reduce wear and are isolated from the pumpage by mechanical seals to prevent contamination. The pump's internal components are made from corrosion-resistant materials suitable for various fluids.

Dimensions

The XF1C Sliding Vane Pump includes 1-inch NPT tapped ports for fluid connections. It is compatible with NEMA C-face motors for direct mounting. The overall dimensions are optimized for tight spaces, although specific measurements depend on the installed configuration. Pump weight averages approximately 12 kg (26.5 lbs).

Features

  • Flow capacity ranges from 5 to 14 GPM (19-53 L/min), depending on model
  • Maximum operational speed of 1,750 rpm
  • Handles fluid viscosities up to 100 SSU (20 cP)
  • Constructed from thermal shock-resistant ductile iron for durability
  • Includes external ball bearings isolated by mechanical seals
  • Integral bracket enables direct mounting to NEMA C-face motors
  • Equipped with optional dual-acting relief valve for excess flow return

Use Cases

The XF1C Sliding Vane Pump is suitable for applications requiring high flow capacity in confined spaces, such as industrial fluid transfer, lubrication systems, or chemical processing. Its robust construction makes it ideal for environments with temperature fluctuations or shock conditions. The pump is valuable for professionals seeking a reliable, durable pump with direct motor mounting to optimize space and installation efficiency. Its high capacity and modular design make it an effective choice for budget-conscious operations with demanding flow requirements while maintaining durability.

Included

The package includes the XF1C Sliding Vane Pump, mounting bracket for direct NEMA C-face motor attachment, and mechanical seals. Electrical motor and connecting hardware are sold separately and are not included in the shipment.

Care & Maintenance

Regular inspection of mechanical seals and bearing lubrication is recommended for optimal operation. The pump's ductile iron construction is resistant to corrosion, but cleaning involves flushing with compatible fluids. Warranty details depend on the manufacturer, typically covering defects in materials and workmanship for one year. Maintenance should follow the manufacturer's guidelines to ensure longevity and performance of the XF1C Sliding Vane Pump.

Our Collections

Frequently Asked Questions

What are the key features of the XF1C Sliding Vane Pump?
The XF1C Sliding Vane Pump is designed with thermal shock-resistant ductile iron construction, external ball bearings, and mechanical seals, making it durable and suitable for tight installation requirements. It is also equipped for direct coupling to standard electric motors, enhancing ease of installation.
Is the XF1C Sliding Vane Pump suitable for portable applications?
Yes, the XF1C sliding vane pump is available in models like XB1 and XB1P that are base-mounted for portable or pad installations, offering flexibility for various operational needs.
What is the flow capacity of the XF1C Sliding Vane Pump?
The XF1C sliding vane pump offers flow capacities ranging from 5 to 14 GPM (19-53 L/min), making it suitable for applications requiring moderate fluid transfer.
Can the XF1C Sliding Vane Pump handle different viscosities?
Yes, the XF1C pump can handle fluid viscosities up to 100 SSU (20 cP), allowing for effective operation with a variety of liquids.
Does the XF1C Sliding Vane Pump have any features for safety or flow regulation?
Yes, the pump can be equipped with an integral dual-acting relief valve that automatically returns excess flow to the tank, helping to regulate pressure and enhance safety during operation.
