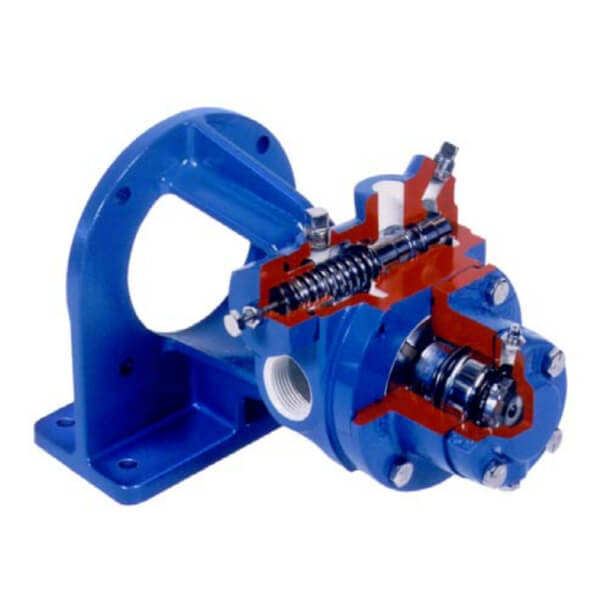

XF1PC Sliding Vane Pump

The XF1PC Sliding Vane Pump is a shock-resistant pump constructed from ductile iron, designed for applications requiring tight installation constraints.

This pump features outer ball bearings isolated from the fluid by mechanical seals, facilitating direct coupling to standard electric motors. The design caters to space-limited settings and includes models with integral brackets for direct mounting to NEMA C-face motors. Available in base-mounted versions suitable for portable or pad installations, the XF1PC model is optimized for durability and reliable performance.

The XF1PC Sliding Vane Pump has 1-inch NPT ports, supporting flow rates up to 14 GPM (53 L/min). It operates at variable speeds up to 1,750 rpm and handles fluid viscosities up to 100 SSU (20 cP). Its robust ductile iron construction ensures resistance to thermal shock and mechanical stress during operation. The pump's design includes an integral dual-acting relief valve that redirects excess flow back to the tank when equipped with a return pipe, helping maintain consistent pressure levels.

Ideal use cases include industrial process fluid transfer, hydraulic systems, and applications that demand shock resistance and precise flow control within tight installation spaces. The XF1PC Sliding Vane Pump caters to industries requiring a reliable, durable solution capable of handling medium flow rates with ease.

Included in the box are the pump unit, mounting bracket, mechanical seals, and installation hardware. Optional accessories such as return pipes and pressure relief valves may be purchased separately. The pump requires no special cleaning routines and should be maintained with periodic inspection of seals and bearings. It is recommended to follow manufacturer guidelines for warranty and operational lifespan to ensure optimal performance and longevity.
