SGL Series High-Speed Sliding Vane Pumps
SGL Series High-Speed Sliding Vane Pumps - SGRL1.25A / BL - Steel/HNBR/Carbon/HNBR (Std) / Right Hand (CW) is backordered and will ship as soon as it is back in stock.
Description
Description

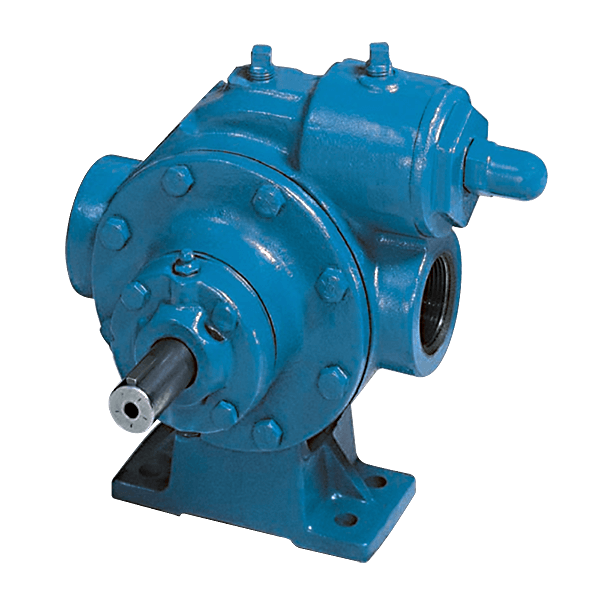

The Blackmer SGL Series high-speed sliding vane pump is a ductile iron pump built for the transfer and recirculation of refrigerants and other liquefied gases. It is part of Blackmer's Cavitation Line, engineered specifically for high vapor pressure liquids, and it uses a cavitation suppression liner to cut the noise, vibration and wear that entrained vapor normally causes. Shock resistant ductile iron construction and a wide choice of mechanical seal materials make it suitable for almost any liquefied gas service.
The sliding vane, positive displacement design primes readily and holds its performance across a wide range of temperatures and differential pressures. The vanes self adjust as they wear, so the pump keeps delivering like a new one instead of losing flow over time. Vanes, liner and end discs are all replaceable, which means the pumping chamber can be rebuilt to like new condition rather than replaced.
Available Models
| Model | Port Size | Nominal Flow Range | Shipping Weight |
|---|---|---|---|
| SGRL1.25A | 1.25 inch NPT | 5 to 16 gpm (19 to 61 L/min) | 32 lb (15 kg) |
| SGL1.25A | 1.25 inch NPT | 5 to 21 gpm (19 to 79 L/min) | 32 lb (15 kg) |
| SGL1.5A | 1.5 inch NPT | 7 to 32 gpm (27 to 121 L/min) | 32 lb (15 kg) |
All three models share the same casing envelope and the same 32 lb (15 kg) shipping weight. The SGRL1.25A is the reduced capacity 1.25 inch pump, the SGL1.25A is the full capacity 1.25 inch pump, and the SGL1.5A is the 1.5 inch pump.
Specifications
| Differential pressure | 150 psi (10.3 bar) |
| Maximum working pressure | 525 psi (36.2 bar) |
| Viscosity range | 0.2 to 4,250 cP |
| Temperature range | -30 F to 240 F (-34 C to 115 C) |
| Speed range | 850 to 1,750 rpm |
| Primary material | Ductile iron, ASTM 536 casing, heads and relief valve cover |
| Rotor | Four vane rotor with single-end keyed shaft |
| Connections | NPT tapped ports |
| Connection orientation | Side inlet, side outlet, 180 degree inline porting |
| Sealing | Blackmer single mechanical seal |
| Relief valve | Adjustable internal relief valve, fitted as standard |
| Bearings | External ball bearings with symmetrical support |
Dimensions
| Models | Length | Width | Height | Pump Weight |
|---|---|---|---|---|
| SGRL1.25A, SGL1.25A, SGL1.5A | 9-3/8 in (238.1 mm) | 9-1/8 in (231.8 mm) | 9-1/8 in (231.8 mm) | 29 lb (13.2 kg) |
Pump weight is the bare pump. The 32 lb (15 kg) figure shown against each model above is the shipping weight and is what the freight quote is based on.
Applications
Butadiene, butene, dimethyl ether, ethyl chloride, sulfur dioxide, refrigerants including MF, TA, TMS and TF, and most 400 and 500 series refrigerant blends. For a fluid not listed here, call and we will check it against Blackmer's chemical compatibility data before you order.
Seal Selection
The mechanical seal is the choice that matters most on a liquefied gas pump, because it sets the elastomer that has to live with your fluid and your temperature. Four seal configurations are offered, and all four are available on all three models.
| Code | Seal Materials | Elastomer Temperature Limit | Notes |
|---|---|---|---|
| BL | Steel / HNBR / Carbon / HNBR (SJCJ) | -30 F to 240 F (-34 C to 115 C) | Standard. The widest temperature band and the usual choice for refrigerant service. |
| S0 | Steel / FKM / Carbon / FKM (SVCV) | -15 F to 240 F (-26 C to 115 C) | No cost alternative for fluids that call for a fluorocarbon elastomer. |
| BN | Steel / Neoprene / Carbon / Neoprene (SPCP) | -30 F to 240 F (-34 C to 115 C) | No cost alternative for services suited to neoprene. |
| BM | Steel / PTFE / Carbon / Kalrez (SACK) | 0 F to 240 F (-18 C to 115 C) | Premium chemical resistance for aggressive specialty gases. |
Rotation
Rotation is viewed from the driven end of the shaft and has to match the driver you are coupling to, so it is selected at order time rather than changed later. Right hand (CW) is the standard build and left hand (CCW) is available at no additional cost. Both are offered on all three models.
Configuration Options
The options below are set at the factory when your pump is built. They are not part of the online selection, so call to specify them and we will build the order around what your service needs. Call to Order (262) 646-4500.
| Option | Choices |
|---|---|
| Vanes | Duravane (standard) or Laminate. Duravane covers -25 F to 240 F, laminate covers -30 F to 240 F. Laminate carries an upcharge. |
| Relief valve | Iron relief valve (standard) or corrosion resistant relief valve. Every SGL ships with an adjustable internal relief valve, so this is a material choice rather than an add or omit choice. |
| Relief valve spring | 51 to 80 psi (standard) or 81 to 150 psi. Both ranges are the same price. Call to specify the range that matches your system pressure. |
| O-rings (pump body) | HNBR (standard), fluorocarbon FKM, PTFE, or neoprene. Worth matching to the seal choice above, so call and we will confirm the pair. |
| Standard construction fields | Coded 0000 on every pump. Required for pump identification. |
| Flanges | Tapped NPT ports, standard on every model. No alternative connection style is offered on this series. |
| Accessories | None offered on the base pump. |
Integrated Unit Assemblies
Blackmer offers a direct mount unit assembly for the SGL 1.25 inch and 1.5 inch pumps. The assembly supplies the base, coupling and coupling guard ready to receive the pump and motor, and is available across the 56, 143T, 145T, 184, 182T, 184T, 215, 213T and 215T motor frames. Pump and motor are priced separately from the assembly. Call to Order (262) 646-4500.
Maintenance Kits
One maintenance kit covers all three models. Rebuild kits are model specific, so match the kit to the pump on your nameplate.
| Model | Kit Type | Part Number |
|---|---|---|
| SGRL1.25A, SGL1.25A, SGL1.5A | Maintenance Kit | 898733 |
| SGRL1.25A | Rebuild Kit | 898832 |
| SGL1.25A | Rebuild Kit | 898833 |
| SGL1.5A | Rebuild Kit | 898834 |
If you are not sure which kit your pump takes, have the serial number ready and call. Call to Order (262) 646-4500.
Replacement Parts
Individual wear parts are stocked as well, so a single vane or o-ring does not mean buying a whole kit.
| Part | Part Number | Fits |
|---|---|---|
| Vane, Duravane (standard) | 093088 | All models |
| Vane, Laminate | 093089 | All models |
| Rotor and shaft assembly | 262300 | All models |
| Liner | 183019 | SGRL1.25A |
| Liner | 183020 | SGL1.25A |
| Liner | 183310 | SGL1.5A |
| Disc | 063075 | All models |
| Head | 033073 | All models |
| Casing | 013075, Call to Order (262) 646-4500 | SGRL1.25A, SGL1.25A |
| Casing | 013376 | SGL1.5A |
| Ball bearing | 903114 | All models |
| Bearing locknut | 903534 | All models |
| Bearing lock washer | 903533 | All models |
| Bearing cover, inboard | 043070 | All models |
| Bearing cover, outboard | 043071 | All models |
| Bearing cover gasket | 383075 | All models |
| Grease seal | 331927 | All models |
| Relief valve | 453077 | All models |
| Relief valve, nickel plated | 452300 | All models |
| Relief valve spring, 51 to 80 psi | 471420 | All models |
| Relief valve spring, 81 to 150 psi | 471428 | All models |
| Relief valve cover | 413076 | All models |
| Relief valve cap | 413200 | All models |
| Locknut tool | 903090 | All models |
For head o-rings, relief valve o-rings, cap screws, gage plugs, grease fittings and the shaft key, call with your serial number and elastomer and we will pull the right numbers. Call to Order (262) 646-4500.
Literature
- Installation and Operation Manual, Blackmer Power Pumps, 801-A00
- Parts List, Models SGL1.25A, SGRL1.25A, SGL1.5A, 801-A01
- Brochure, SGL Series Specialty Liquefied Gas Transfer Pump, 801-010
- Materials of Construction, Models SGRL1.25A, SGL1.25A, SGL1.5A, 801-091
- Dimensional Drawing, Models SGL1.25, SGL1.5, 801-101
- Performance Curves, Models SGL1.25A, SGRL1.25A, 801-021
- Performance Curves, Model SGL1.5A, 801-022
- Brochure, Blackmer Integrated Unit Assemblies, 011-050
- Spec Sheet, Nord Gearbox Ratings for Blackmer Integrated Unit Assemblies, 109-002
- ATEX Declaration of Conformity for Blackmer Vane Pumps, Form 617
We are an authorized Blackmer distributor and we stock and support the full SGL line, including the larger SGL 2 inch to 4 inch pumps for higher flow liquefied gas service. If you need help matching a pump, a seal or a kit to your application, or you want a quote on a complete unit assembly with motor and baseplate, call us at (262) 646-4500.
Other Pumps in This Family
The Blackmer SGL family also includes the SGL Series 2-4 Inch Sliding Vane Pumps for higher flow rates. Call (262) 646-4500 for help selecting the right pump for your application.
