Blackmer 210A Series sliding vane hand pumps provide a safe, convenient way to dispense or transfer non-corrosive liquids from drums, barrels, tanks and vats without electrical power or compressed air. They are built for easy, efficient operation in industrial, construction and agricultural service, and they are the small frame 3/4 inch ported members of Blackmer's hand pump line.
These pumps work on the same principle as Blackmer's sliding vane power pumps. They are positive displacement and self-priming, and they deliver steady, non-pulsating flow at easy turning speeds. The cylinder and head are cast iron for durability. The carbon sliding vanes are tough, low friction, chemically inert and long wearing, and they self-compensate for wear to maintain high suction lift. Vanes are easily replaced at low cost after years of service. Every pump is performance tested at the factory, and the line is manufactured in conformance with ISO 9001.
Models and Mounting Styles
All five models share the same small frame pumping element and 3/4 inch NPT ports. They differ in how the pump is mounted and what dispensing equipment ships with it. The FM approved models meet OSHA safety guidelines and regulations for handling Class I and Class II flammable and combustible liquids such as gasoline, naphtha, solvents and thinners.
| Model | Style | Blackmer Item Number | FM Approved | Shipping Weight |
|---|---|---|---|---|
| PA210A | Basic pump for in-line installation | 10200 | No | 14 lb (6 kg) |

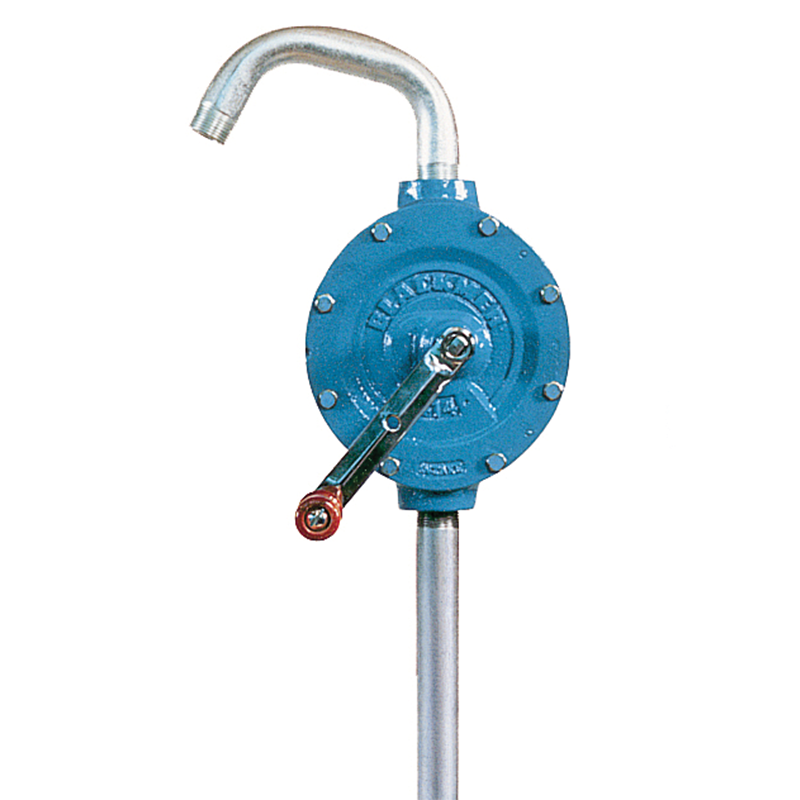

| AT210A | Standard dispensing pump | 10201 | No | 19 lb (8 kg) |
| BR210A | Standard transfer pump | 10202 | No | 20 lb (9 kg) |

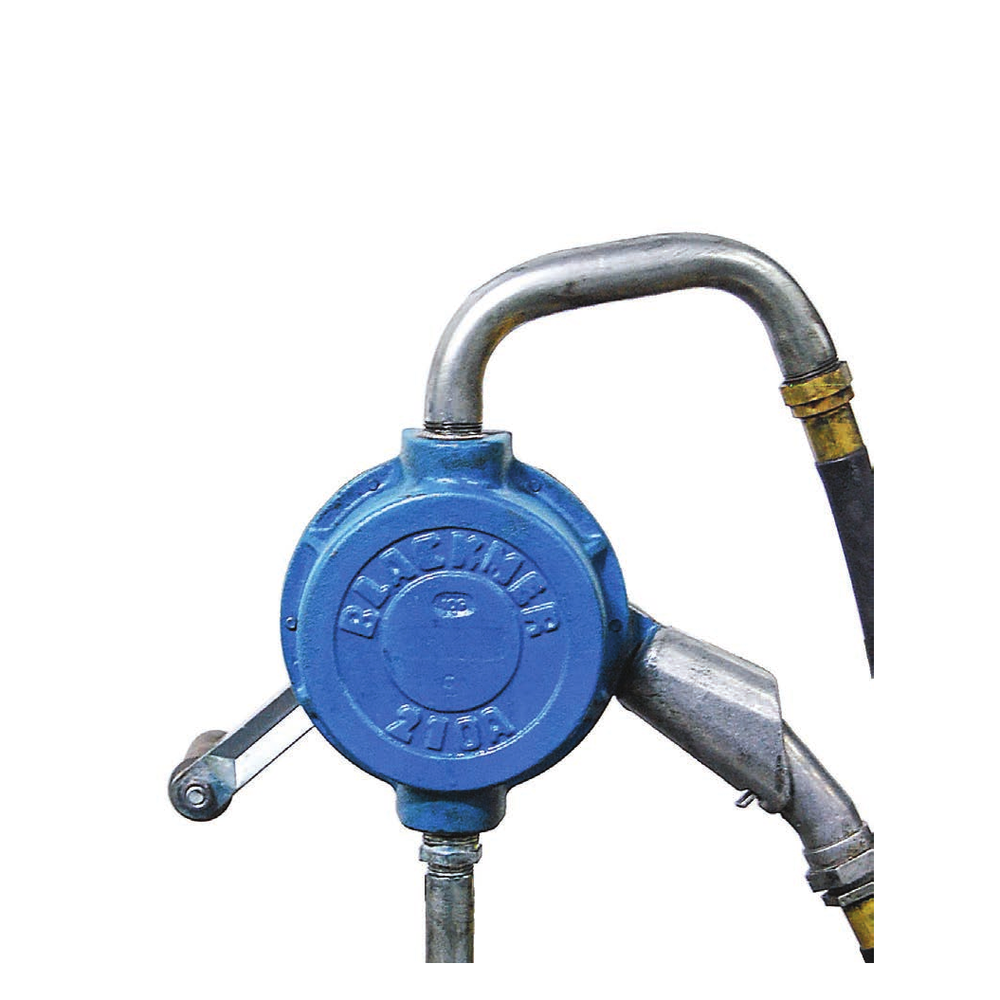

| BRF210A | FM approved transfer pump | 10204 | Yes | 24 lb (11 kg) |
| DPF210A | FM approved dispensing pump | 10205 | Yes | 28 lb (13 kg) |
Standard Equipment by Model
Every item listed below ships with the model marked Yes. Anything marked No can be added from the accessory list further down this page.
| Standard Equipment | PA210A | AT210A | BR210A | BRF210A | DPF210A |
|---|---|---|---|---|---|
| Discharge spout | No | Yes | Yes | Yes | Yes |
| Standard bung adaptor | No | Yes | Yes | No | No |
| Bung adaptor with flame shield | No | No | No | Yes | Yes |
| Drip pan with built-in bung | No | No | No | No | Yes |
| Two piece suction pipe | No | Yes | Yes | No | No |
| Telescoping suction pipe with screen | No | No | No | Yes | Yes |
| 5/8 inch x 8 ft hose and nozzle | No | No | Yes | No | No |
| 3/4 inch anti-static hose and nozzle | No | No | No | Yes | No |
| Vacuum breaker | No | No | No | Yes | No |
| FM approved | No | No | No | Yes | Yes |
The PA210A is the bare pump on its own. It is intended to be piped into a permanent transfer line rather than mounted on a drum, so it ships without a spout, bung adaptor or suction pipe. Any of those parts can be ordered separately.
Performance and Specifications
| Specification | 210A Small Frame |
|---|---|
| Nominal flow rate at 115 revolutions | 10 gpm (38 L/min) |
| Port size, inlet and outlet | 3/4 inch NPT |
| Maximum viscosity | 2,000 SSU (420 cP) |
| Maximum differential pressure | 10 psi (0.7 bar) |
| Maximum liquid temperature | 300 F (149 C) |
| Rotation | Right hand |
| Suction pipe length, models so equipped | 40 inch |
Typical applications include dispensing petroleum products, solvents, coolants and curing agents from drums into smaller containers, transferring fuels and process liquids from drums to larger tanks with a hose and nozzle, refueling diesel or gasoline powered equipment, permanently piped in-line transfer systems, and standby fueling or pre-lubricating on agricultural and off-road equipment.
Materials of Construction
| Component | Material |
|---|---|
| Cylinder and head | Cast iron |
| Vanes | Carbon |
| Vane springs | Stainless steel |
| Rotor | Sintered iron |
| Shaft and pin assembly | Steel |
| Crank arm | Zinc plated steel |
| Handle grip | Glass filled nylon |
| Handle pin | Steel |
| Packing | Graphite |
| Packing nut | Acetal homopolymer |
| Head gasket | Paper |
| Cap screws | Steel |
| Jam nut | Zinc plated steel |
| Discharge spout, AT, BR, BRF, DPF | Zinc plated steel |
| Suction pipe, AT and BR | Galvanized steel or zinc plated steel |
| Telescoping pipe, BRF and DPF | Galvanized steel and aluminum |
| Hose, BR210A | Buna liner with neoprene cover |
| Hose, BRF210A | Buna liner, neoprene cover, anti-static wire |
| Nozzle and nozzle hanger, BR and BRF | Aluminum |
| Drip pan assembly, DPF210A | Cast iron with zinc plated steel and brass fittings |
Dimensions
The figures below are for the bare PA210A pumping element, which is common to all five models. Styles that ship with a spout, bung adaptor, suction pipe, hose or drip pan add to the overall envelope.
| Reference | Inches | Millimeters |
|---|---|---|
| A | 1-3/16 | 30.2 |
| B | 5-5/16 | 135.0 |
| C | 6 | 152.4 |
| D | 6-1/4 | 158.8 |
| E | 3-1/2 | 88.9 |
| G | 1/2 | 12.7 |
| H | 4-3/8 | 111.1 |
Pump weight for the bare PA210A element is approximately 12 lb (5.4 kg). Shipping weights for each complete model are listed in the Models and Mounting Styles table above. The lettered dimension drawing is available in the Literature and Documentation section below.
Accessories
These accessories adapt a standard hand pump to a specific job. Each one is ordered separately by part number.
| Part Number | Accessory | Fits | Shipping Weight |
|---|---|---|---|
| 10050 | Locking device | All models | 1 lb (0.5 kg) |
| 10053 | Drip pan, 3/4 inch x 2 inch | All models | 7 lb (3 kg) |
| 10057 | Solvent O-ring kit | PA210A, AT210A, BR210A | 1 lb (0.5 kg) |
| 10058 | Standard hose and nozzle kit, 5/8 inch x 8 ft | PA210A, AT210A, BR210A | 4 lb (2 kg) |
| 10060 | Solvent hose and nozzle kit, 3/4 inch x 89 inch | PA210A, AT210A, BR210A | 4 lb (2 kg) |
| 10061 | Anti-static hose and nozzle kit, 3/4 inch x 8 ft | All models | 4 lb (2 kg) |
| 10065 | Anti-static hose, 3/4 inch x 8 ft | All models | 4 lb (2 kg) |
| 10071 | Solvent hose assembly, 3/4 inch x 89 inch | PA210A, AT210A, BR210A | 4 lb (2 kg) |
Maintenance Kit
One repair kit covers every model on this page. It contains the wear parts that are normally replaced together: the carbon vanes, vane springs, packing, packing nut, shaft locknut and gasket set.
| Part Number | Kit | Fits | Availability |
|---|---|---|---|
| 10049 | Pump repair kit | All models | Call to Order (262) 646-4500 |
Replacement Parts
Individual wear and service parts for the pumping element.
| Part Number | Description | Quantity per Pump |
|---|---|---|
| 090151 | Vane, carbon | 3 |
| 110110 | Vane spring | 3 |
| 200105 | Rotor | 1 |
| 210105 | Shaft and pin assembly | 1 |
| 300105 | Packing | 1 |
| 140107 | Packing nut | 1 |
| 922426 | Shaft locknut, 5/8-18 | 1 |
| 700115 | Crank arm | 1 |
| 700119 | Handle grip | 1 |
| 922946 | Handle pin jam nut, 3/8-16 | 1 |
| 920073 | Head cap screw, 1/4-20 x 3/4 inch | 4 to 6 |
| 020105 | Cylinder | 1 |
| 030105 | Head | 1 |
| 380116 | Gasket set | Set of 3 |
Cylinder 020105 and head 030105: Call to Order (262) 646-4500.
Attachment and Hardware Parts
Parts for the spouts, bung adaptors, suction pipes, hoses and nozzles that ship on the dispensing and transfer styles.
| Part Number | Description | Notes |
|---|---|---|
| 700130 | Discharge spout | Standard on AT, BR, BRF and DPF |
| 700118 | Bung adapter | Standard on AT210A and BR210A |
| 700136 | Bung adapter with flame shield | Standard on BRF210A and DPF210A |
| 700600 | Suction pipe, 1/2 inch x 40 inch, two piece | Standard on AT210A and BR210A |
| 700832 | Telescoping suction pipe, 3/4 inch x 40 inch | Standard on BRF210A and DPF210A |
| 701951 | O-ring for telescoping suction pipe | Used with 700832 |
| 710861 | Tank washer | Used with 700832 |
| 710866 | Washer for 1/2 inch suction pipe | Used with 700600 |
| 908805 | Bushing, 3/4 inch x 1/2 inch | Adapts the 1/2 inch suction pipe |
| 700901 | Hose assembly, 5/8 inch x 8 ft | Standard on BR210A |
| 700547 | Nozzle | Ships with the hose assemblies |
| 700324 | Nozzle hanger | Ships with the hose assemblies |
| 908543 | Hose adapter, 3/4 inch | Connects a 3/4 inch hose to the spout port |
| 700177 | Vacuum breaker assembly | Standard on BRF210A |
| 920080 | Cap screw, 1/4-20 x 1 inch | Nozzle hanger mounting |
| 920331 | Cap screw, 3/8-16 x 1 inch | Attachment hardware |
| 920351 | Cap screw, 3/8-16 x 1-1/4 inch | Attachment hardware |
Literature and Documentation
- Installation and Operation Manual, Rotary Hand Pumps 210A and F210A, 301-A00
- Suction Pipe O-Ring Selection Table, Form 524
- Dimensions, Hand Pumps 210A and F210A, 301-101
- Materials of Construction, Hand Pumps, 301-091
- Brochure, Hand Operated Sliding Vane Pumps, 301-001
- Brochure, Hand Operated Sliding Vane Pumps, 301-001 (A4)
Ordering
Select the mounting style that matches how the pump will be used. Choose PA210A to pipe the pump into a fixed transfer line, AT210A or DPF210A to dispense from a drum into smaller containers, and BR210A or BRF210A to transfer with a hose and nozzle. Choose one of the FM approved models, BRF210A or DPF210A, for Class I and Class II flammable and combustible liquids. If you need a larger frame hand pump, or a suction pipe, hose or nozzle combination that is not listed above, call us and we will put the right package together.
We are an authorized Blackmer distributor and stock hand pumps, repair parts and accessories. For application help, current lead times or a quotation, call (262) 646-4500.
