Description
Description

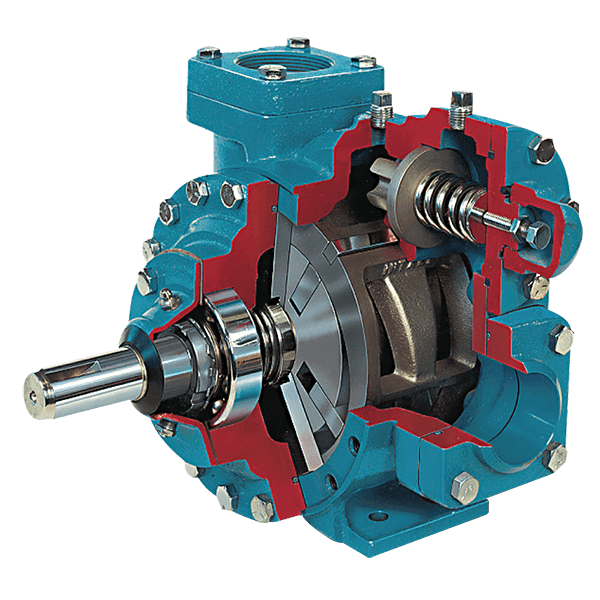

The XLW Series is Blackmer's Heavy Duty ductile iron sliding vane pump line, purpose-built for liquids carrying suspended abrasive particles — up to 250 microns and 25% concentration. Hardened, replaceable wear surfaces (liners and end discs) let the pumping chamber be rebuilt to like-new condition without removing the pump from the piping. The line spans 3 sizes with flows from 14 to 190 gpm, differential pressure to 150 psi, and temperatures from -25°F to 300°F. Blackmer also offers fully integrated unit assemblies, motor, gearbox, baseplate, couplings, and guards pre-engineered around the XLW pump for drop-in installation with no alignment required.
- Replaceable casing, liners, and end discs allow easy rebuilding of the pumping chamber without removing the pump from the piping
- Hardened ductile-iron construction with internal relief valve
- Blackmer mechanical seal and external ball bearing construction, isolated from pumpage, for maximum reliability
- Symmetrical bearing support assures even loading and wear for long life
- Self-adjusts for wear to maintain flow rates, with excellent self-priming and dry-run capabilities
- Easy maintenance: vanes can be replaced without removing the pump from the piping system
- Fully integrated unit assemblies (motor, gearbox, baseplate, couplings, and guards) available as a pre-engineered drop-in package, see Unit Assemblies below
Available Models
| Model | Nominal Flow Rate | Max Differential Pressure | Starting Price | Shipping Weight |
|---|---|---|---|---|
| XLW2F | 14 - 40 gpm (53 - 151 L/min) | 150 psi (10.3 bar) | $5,926.48 | 88 lb (36 kg) |
| XLW3F | 23 - 85 gpm (87 - 322 L/min) | 150 psi (10.3 bar) | $8,764.38 | 160 lb (73 kg) |
| XLW4A | 104 - 190 gpm (394 - 719 L/min) | 150 psi (10.3 bar) | $17,038.50 | 210 lb (95 kg) |
Starting prices shown are for the AN seal (Standard), NPT flanges (Standard), Hardened Iron vanes (standard), Extra Clearance Right-hand rotation, and no gear reducer. Select Model, Seal, and Flange above to see the price for your configuration.
Materials of Construction
| Parts | Material |
|---|---|
| Casing, Heads, Relief Valve Cover | Ductile Iron: ASTM A536 |
| Liner | Hardened Ductile Iron |
Dimensions (Pump Only)
| Model | L | W | H | Approx. Weight (pump only) |
|---|---|---|---|---|
| XLW2F | 13-4/9 in | 11 in | 10 in | 85 lb (38.6 kg) |
| XLW3F | 15-15/16 in | 15-7/8 in | 13-3/8 in | 160 lb (72.6 kg) |
| XLW4A | 16-7/16 in | 16-15/16 in | 15-7/16 in | 205 lb (93 kg) |
Configuration Options (call to order)
The options below are not selectable online. To configure any of these for your order, call (262) 646-4500.
| Option | Values | Notes |
|---|---|---|
| Vanes | Hardened Iron (Std, code B); Laminate (code 6) | The prices shown include Hardened Iron vanes (standard). Laminate vanes are available at the same price ($327 XLW2F, $545 XLW3F, $1,130 XLW4A) — call to select. |
| Rotation | Extra Clearance Rotor, Right-hand/CW (Std, code GR); Extra Clearance Rotor, Left-hand/CCW (code GL, $0); Full Size Rotor, Right-hand/CW (code JR, $0, XLW2F/XLW3F only); Full Size Rotor, Left-hand/CCW (code JL, $0, XLW2F/XLW3F only, NA on XLW4A) | No charge for any rotation choice. Full Size Rotor is available on XLW2F and XLW3F only. |
| Relief Valve | Iron (Std on XLW2F/XLW3F, code 1, NA on XLW4A); Iron-Plated (Std on XLW4A, code 2); Stainless Steel (NA on all 3 models, also shown as code "2" on the sheet) | Each model ships with one relief valve material: Iron on XLW2F/XLW3F, Iron-Plated on XLW4A. Stainless Steel is not available on this line. |
| Relief Valve Spring | XLW2F: 51-75 psi (code 3), 76-110 psi (code 5), 111-150 psi (code 7); XLW3F: 51-100 psi (code 4), 101-150 psi (code 7); XLW4A: 51-75 psi (code 3), 76-125 psi (code 5), 126-150 psi (code 8); all $0 | Call to specify your required pressure range. |
| O-Rings | Fluorocarbon/FKM (Std, code 2); PTFE (code 3) | PTFE adds $843 (XLW2F), $944 (XLW3F), $1,240 (XLW4A) |
Unit Assemblies (Optional Drive Packages)
Blackmer also offers factory gear reducers, gear box assemblies, and fully base-mounted unit assemblies for the XLW Series, priced separately and added to the pump (and, where applicable, motor) price. These involve many drive-ratio, motor-frame, and baseplate combinations well beyond what fits in this page's 3 live options, call (262) 646-4500 for full selection and pricing.
| Assembly | Applicable Models | Includes | Starting Price (add to pump price; unit assemblies also add motor price) |
|---|---|---|---|
| SK 571.1-W Unit Assembly (gear-reduced, 4 ratios from 5.46:1 to 9.51:1) | XLW2F | Base, gear reducer, couplings, and coupling guards, ready to receive pump and motor | $6,290 |
| SK 771-W Unit Assembly (gear-reduced, 5 ratios from 4.96:1 to 8.50:1) | XLW3F | Base, gear reducer, couplings, and coupling guards, ready to receive pump and motor | $7,050 |
| SK 52-W Unit Assembly (gear-reduced, 5.08:1) | XLW4A | Base, gear reducer, couplings, and coupling guards, ready to receive pump and motor | $7,640 |
| SK771.1Z Gear Box Assembly (pump-only add-on, 8 ratios from 2.15 to 5.41) | XLW2F only | Gear reducer only (no base/motor mount), add to pump price | $2,395 flat, regardless of ratio or motor frame |
| N15 Base Mounted Unit Assembly (SK771.1Z reducers only) | XLW2F only | BaseTek or Bent Steel base plate sized to motor frame (145TC through 215TC), add to pump/reducer/motor price | $1,770 – $3,190 depending on base type and motor frame |
See the Nord Gearbox Ratings spec sheet and Integrated Unit Assemblies brochure under Literature below for the full ratio/motor-frame/speed tables.
Maintenance Kits
| Model | Description | Part Number |
|---|---|---|
| XLW2F | Maintenance Kit | 898974 |
| XLW2F | Rebuild Kit | 899074 |
| XLW3F | Maintenance Kit | 898975 |
| XLW3F | Rebuild Kit | 899075 |
| XLW4A | Maintenance Kit | 899176 — Call to Order (262) 646-4500 |
| XLW4A | Rebuild Kit | 899276 — Call to Order (262) 646-4500 |
Literature
- Installation Operation Manual (IOM), Blackmer Power Pump Models XLW2F, XLW3F, XLW4A 105-B00
- Materials of Construction, Blackmer Power Pump Models XLW2F, XLW3F, XLW4A 105-093
- Brochure, Blackmer XLW Series Sliding Vane Pumps 105-001
- Brochure, Blackmer Serie XLW Bombas 105-001 (Spanish)
- ATEX Declaration of Conformity for Blackmer Vane Pumps (Addendum to the IOM), Form 617
- Performance Curves, XLW2F 105-027
- Performance Curves, XLW3F 105-029
- Performance Curves, XLW4A 105-033
- Brochure, Blackmer Integrated Unit Assemblies 011-050
- Spec Sheet, Nord Gearbox Ratings for Blackmer Integrated Unit Assemblies 109-002
Full model-specific parts lists and dimension sheets are available from Blackmer/PSG on request; the Dimensions table above covers the pump-only envelope for each model.
Questions about a configuration not shown here, or about the optional gear reducers and unit assemblies? Call (262) 646-4500.
