LGL Series 2 inch to 4 inch Ductile Iron Pumps

$ 4,095.00 $ 4,550.00
Size or Model
Discharge Flange
Auxiliary Inlet

LGL Series 2 inch to 4 inch Ductile Iron Pumps - TLGLF3C / Alternate Flange Option 1 / NPT is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

We ship in stock items same day. If it needs to be ordered we will ship it out to you the day it arrives.

If you have any questions you can reach us at (262) 646.4500 or click here

Description

Blackmer LGL Series 2 inch to 4 inch pumps are ductile iron sliding vane pumps built for propane, LPG, butane and anhydrous ammonia. Part of Blackmer's Cavitation Line, every model on this page carries a cavitation suppression liner that cuts the noise, vibration and wear normally caused by entrained vapor, plus a replaceable casing liner and end discs so the pumping chamber can be rebuilt to like new condition without replacing the pump. All models are listed by Underwriters Laboratories for both LPG and anhydrous ammonia service and ship with an internal relief valve, Duravane vanes, Blackmer mechanical seals, external ball bearings and Buna-N O-rings.

Two Mounting Platforms, One Series

This page covers both halves of the 2 inch to 4 inch LGL line, and the two halves mount very differently.

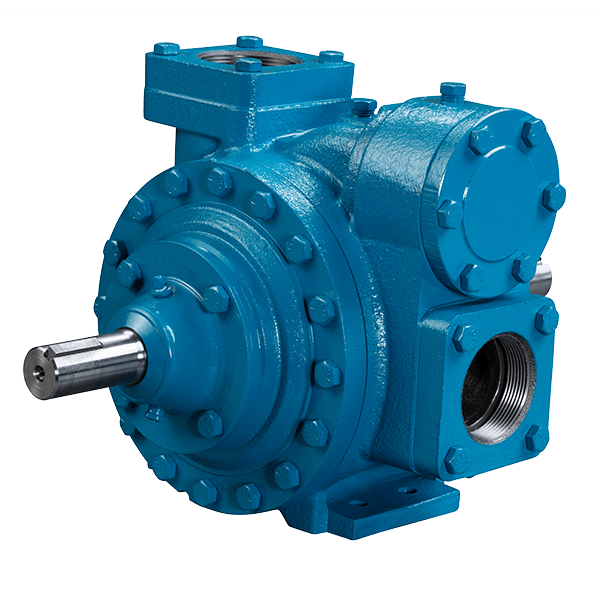

LGLD2E, LGLD3F and LGLD4B are base mounted pumps for bulk plants, terminals and truck systems. They are commonly bolted to the chassis of a bobtail or to a steel pad welded to the tank, and the 3 inch and 4 inch sizes mount to a transport near or between the tank landing gear brackets. They are rated to 150 psi (10.3 bar) differential pressure and are available as a bare pump, as a gearbox unit or as a V-belt drive unit.

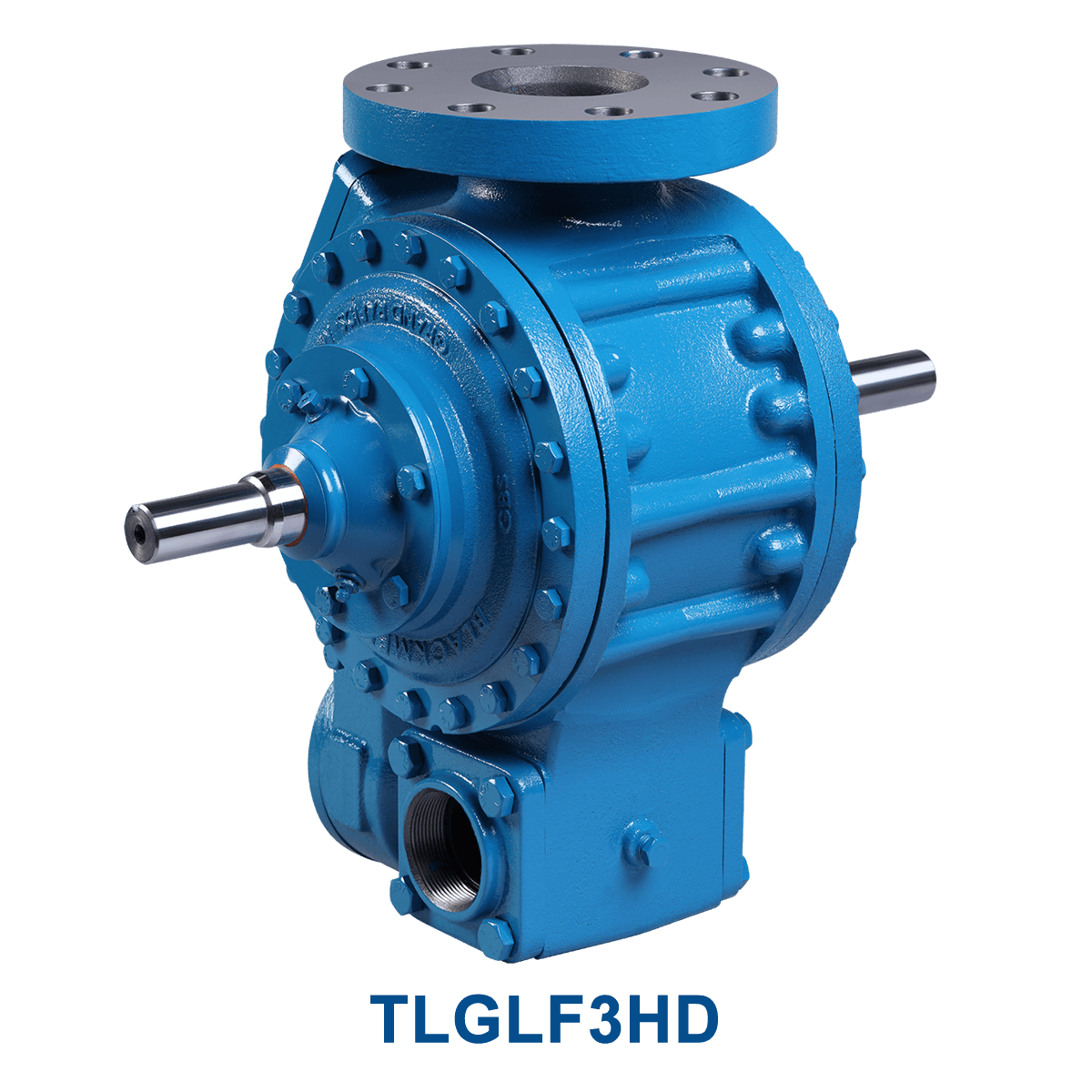

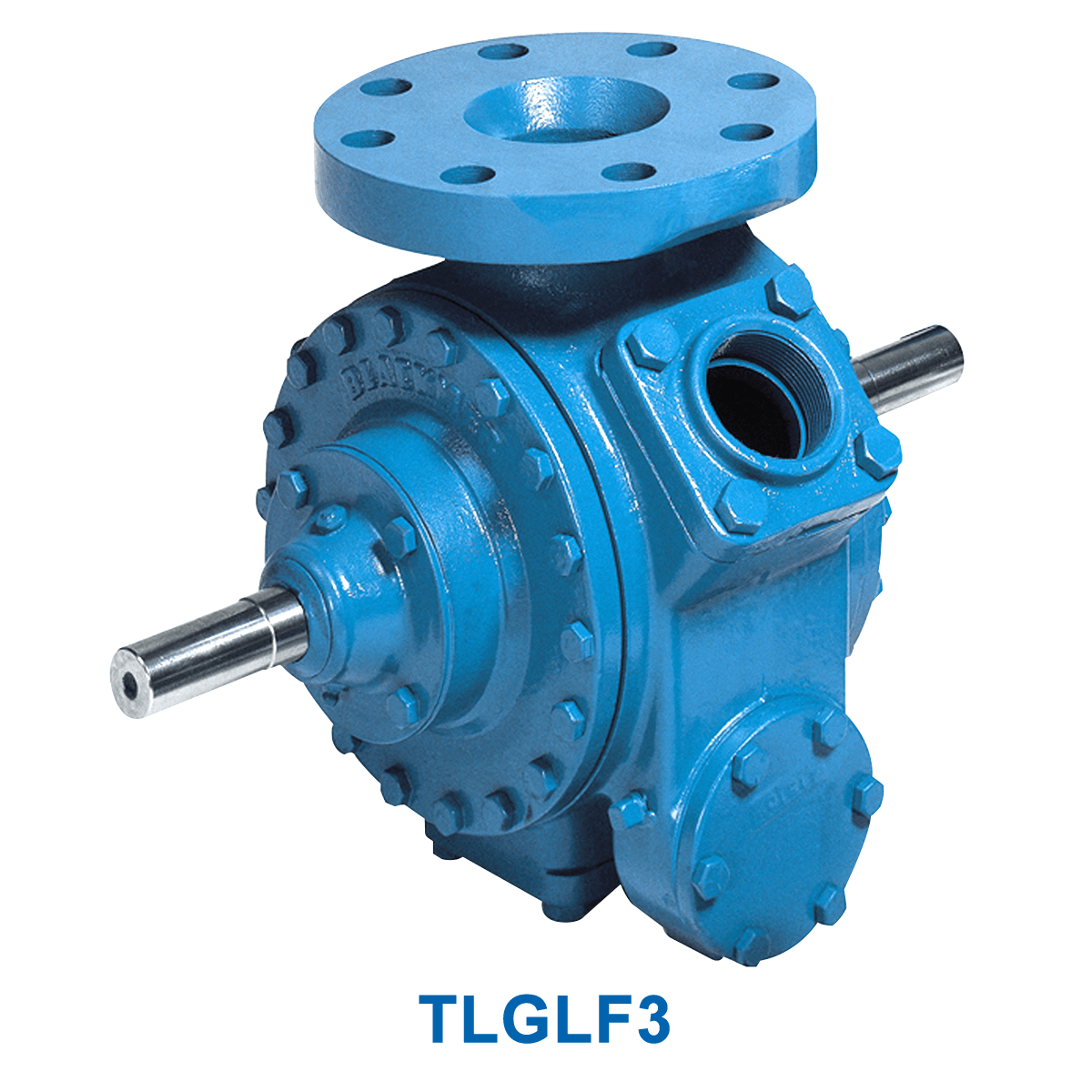

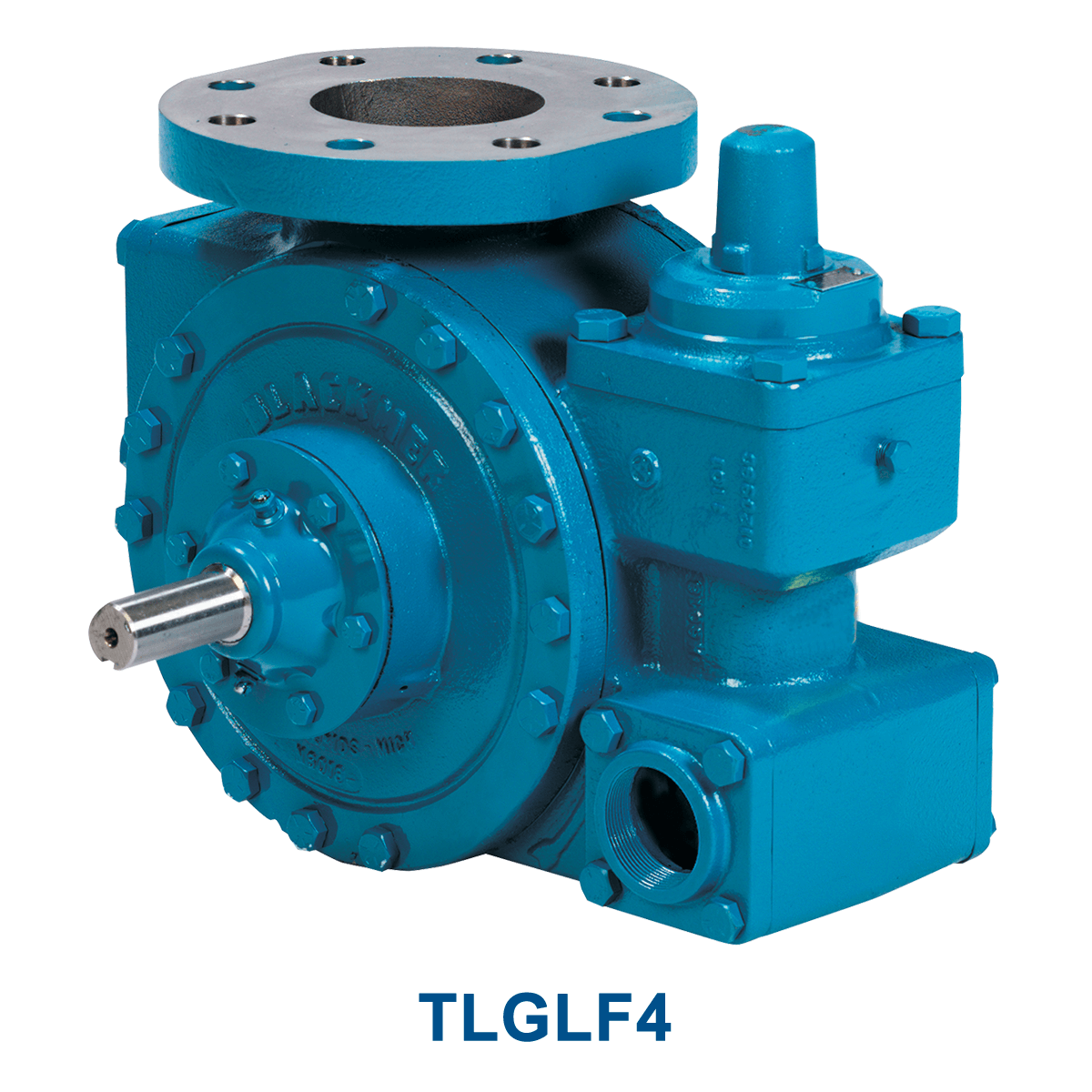

TLGLF3C, TLGLF3HD and TLGLF4B are flange mounted truck pumps that bolt straight to the tank. Direct mounting removes the inlet pipe, shut off valve and external strainer, which is where flow restriction and vaporization problems usually start, so the result is smoother operation and longer pump life. Every TLGLF model has a double-ended drive shaft for clockwise or counterclockwise rotation by repositioning the pump, and an auxiliary intake port for emergency unloading of another tank or transport. They are rated to 125 psi (8.6 bar) differential pressure and can be driven by PTO shaft or by hydraulic motor using an adapter kit.

Models and Performance

Model Mounting Nominal Flow Range Speed Range Max Differential
LGLD2E Base mounted, 2 inch 30 to 105 gpm (114 to 397 L/min) 350 to 980 rpm 150 psi (10.3 bar)
LGLD3F Base mounted, 3 inch 60 to 201 gpm (227 to 761 L/min) 350 to 980 rpm 150 psi (10.3 bar)
LGLD4B Base mounted, 4 inch 150 to 370 gpm (568 to 1,400 L/min) 350 to 800 rpm 150 psi (10.3 bar)
TLGLF3C Flange mounted, 3 inch 60 to 140 gpm (227 to 530 L/min) 400 to 870 rpm 125 psi (8.6 bar)
TLGLF3HD Flange mounted, 3 inch high capacity 80 to 180 gpm (303 to 681 L/min) 350 to 800 rpm 125 psi (8.6 bar)
TLGLF4B Flange mounted, 4 inch 190 to 425 gpm (719 to 1,608 L/min) 350 to 800 rpm 125 psi (8.6 bar)

Common to every model: maximum working pressure 350 psi (24.1 bar), temperature range -25°F to 240°F (-32°C to 115°C), viscosity 0.2 to 10 cP, side inlet with top outlet porting, ductile iron construction, Duravane vanes and Buna-N elastomers.

The TLGLF3HD moves 55 percent more product than the TLGLF3C on the same 3 inch frame, which is what makes it the right pick for high capacity bobtails running 7,000 gallon tanks.

Discharge Flange Options

Discharge flange is selectable above. The connection each code produces depends on the model, so use this table to pick the right one. On the TLGLF models the discharge flange code covers the discharge only; the auxiliary inlet is selected separately.

Option LGLD2E LGLD3F LGLD4B TLGLF3C TLGLF3HD TLGLF4B
NPT 2 in x 2 in (standard) 3 in x 3 in (standard) Not available Not available 2 in NPT (standard) Two 2 in NPT (standard)
Weld 2 in x 2 in 3 in x 3 in 4 in x 3 in (standard) Not available Not available Not available
Alternate Flange Option 1 Not available Not available 3 in x 3 in NPT 2 in NPT elbow (standard) 2 in NPT elbow Not available
Alternate Flange Option 2 Not available Not available 3 in x 3 in weld 2 in weld elbow 2 in weld elbow Not available
Alternate Flange Option 3 Not available Not available 4 in x 4 in weld 2 in NPT 2 in NPT Not available
Alternate Flange Option 4 Not available Not available Not available 2 in weld 2 in weld 2 in weld
Stainless Steel NPT Elbow Not available Not available Not available 2 in NPT elbow 2 in NPT elbow Not available
Stainless Steel Weld Elbow Not available Not available Not available 2 in weld elbow 2 in weld elbow Not available
Stainless Steel Weld Straight Not available Not available Not available 2 in weld 2 in weld Not available

Auxiliary Inlet Options

The auxiliary intake port is a TLGLF feature, used for emergency unloading of a second tank or transport. Select None for any LGLD model, since base mounted LGLD pumps do not have an auxiliary inlet. Blank Flange closes the port off on a TLGLF pump that does not need it.

Option TLGLF3C TLGLF3HD TLGLF4B
None For LGLD2E, LGLD3F and LGLD4B only
NPT 2 in NPT 2 in NPT 3 in NPT
Weld 2 in weld 2 in weld 3 in weld
Alternate Flange Option 1 2 in NPT elbow 2 in NPT elbow 4 in weld
Alternate Flange Option 2 2 in weld elbow 2 in weld elbow Not available
Stainless Steel NPT Elbow 2 in NPT elbow 2 in NPT elbow Not available
Stainless Steel Weld Elbow 2 in weld elbow 2 in weld elbow Not available
Stainless Steel Weld Straight 2 in weld 2 in weld Not available
Blank Flange Blank flange fitted Blank flange fitted Blank flange fitted

Standard Configuration

Every pump on this page ships with the following. Blackmer lists each of these as standard on this series, with no alternative offered.

Item Standard
Vanes Duravane
Rotation Double-ended keyed shafts, so the pump runs clockwise or counterclockwise depending on how it is mounted
Mechanical Seal Steel HD / Buna-N / Carbon / Buna-N, rated for LPG or NH3 service
Relief Valve Internal iron on LGLD2E, LGLD3F, TLGLF3C and TLGLF3HD. Corrosion resistant on LGLD4B and TLGLF4B
Relief Valve Spring Steel
O-Rings Buna-N

Configuration Options

The following are available but are not selectable above. Call (262) 646-4500 to specify any of them on your order.

Option Details
Hydraulic Motor Adapter Kit Lets a TLGLF or LGLD pump be driven by a hydraulic motor instead of a PTO shaft. Available for 1 inch and 1-1/4 inch hydraulic motor shafts depending on model
Relief Valve Shims TLGLF3C only, for fine adjustment of the internal relief valve setting
Integrated Unit Assembly See below

Unit Assemblies

The three base mounted models can be supplied as a complete Blackmer Integrated Unit Assembly rather than as a bare pump. These are pre-engineered drop-in packages that need no field alignment.

V-belt drive units include the base, pump and motor sheaves and hubs, V-belts and steel guard, ready to receive the pump and motor. Ratios run from 2.24:1 to 5.37:1 depending on model, across NEMA 184T through 324T motor frames.

Gear reducer units include the base, gear reducer, couplings and coupling guards, ready to receive the pump and motor. LGLD2E uses the SK 571.1-W reducer with nine ratios from 2.23:1 to 9.51:1, LGLD3F uses the SK 771.1-W with six ratios from 2.15:1 to 4.96:1, and LGLD4B uses the SK 52-W with seven ratios from 2.78:1 to 4.61:1.

Unit assemblies are priced separately from the pump. Call (262) 646-4500 with your required flow rate, motor frame and drive type and we will quote the matching assembly.

Dimensions and Weights

Model Length Width Height Pump Weight
LGLD2E 13-4/9 in (341.3 mm) 9-11/16 in (246.1 mm) 10 in (254 mm) 85 lb (38.6 kg)
LGLD3F 20-3/8 in (517.5 mm) 13-1/4 in (336.6 mm) 13-3/8 in (339.7 mm) 160 lb (72.6 kg)
LGLD4B 16-3/8 in (415.9 mm) 16-15/16 in (430.2 mm) 15-4/9 in (392.2 mm) 205 lb (93 kg)
TLGLF3C 17-7/8 in (454 mm) 9-9/16 in (242.9 mm) 13-3/8 in (339.7 mm) 126 lb (57.2 kg)
TLGLF3HD 20-3/16 in (512 mm) 12-1/8 in (308 mm) 17-1/8 in (435 mm) 149 lb (68 kg)
TLGLF4B 20-3/4 in (527.1 mm) 17-5/16 in (439.7 mm) 13-7/8 in (352.4 mm) 220 lb (99.8 kg)

Shipping weights are higher than the pump weights above and are shown on each variant: 90 lb for LGLD2E, 166 lb for LGLD3F, 227 lb for LGLD4B, 125 lb for TLGLF3C, 149 lb for TLGLF3HD and 240 lb for TLGLF4B.

Maintenance Kits

Maintenance kits cover the routine wear items. Rebuild kits go further and cover a full pumping chamber restoration. The LGLD4B and TLGLF4B share the same kits.

Model Maintenance Kit Rebuild Kit
LGLD2E 898979 899079
LGLD3F 898981 899081
LGLD4B 898922 899022
TLGLF3C 898980 899080
TLGLF3C, including relief valve parts 899225 899125
TLGLF3HD Call to Order (262) 646-4500 Call to Order (262) 646-4500
TLGLF4B 898922 899022

Replacement Parts

Individual wear parts are stocked for every model on this page, so a single vane or seal can be replaced without buying a whole kit.

Part LGLD2E LGLD3F LGLD4B TLGLF3C TLGLF3HD TLGLF4B
Vane, Duravane 091419 095131 092019 095132 095131 092019
Rotor and Shaft Assembly 264445 265148 262041 265147 265148 262041
Liner 184405 185111 182000 185101 185111 182000
Disc 064412 065112 062039 065121 065112 062039
Head 034416 035128 032041 035132 035128 032041
Casing 014405 015127 012019 015128 Call to Order (262) 646-4500 012041
Mechanical Seal Assembly 334439 335225 332050 334439 335225 332050
Ball Bearing 903156 903166 903166 903156 903166 903166
Relief Valve Spring Call to Order (262) 646-4500 475135 472039 471428 475135 472039
Locknut Tool 903091 903091 903092 903091 903091 903092
Hydraulic Motor Adapter Kit Call to Order (262) 646-4500 895140 892037 Call to Order (262) 646-4500 895140 892037

Gaskets, O-rings, cap screws, lock washers, push rods, keys, grease fittings, gage plugs and shaft protectors are also stocked. Call (262) 646-4500 with your pump model and we will pull the right part number from Blackmer's parts list.

Literature

Installation and Operation Manuals

Parts Lists

Brochures and Specifications

Materials of Construction

Dimensional Drawings

Performance Curves

Certification

We are an authorized Blackmer distributor and we stock the pumps, kits and individual parts for the whole LGL line. If you are not sure which model, discharge flange or auxiliary inlet fits your bobtail, transport or bulk plant, call us at (262) 646-4500 and we will work it out with you.

Other Pumps in This Family

Blackmer's LP-gas pump family also includes the 1 inch LG1 Series Sliding Vane Pumps, the LGL Series 1.25 inch to 1.5 inch Ductile Iron Pumps, and the LGLH2A Autogas High Pressure Sliding Vane Pumps. Call (262) 646-4500 for help selecting the right pump for your application.
