LGLH2A Autogas High Pressure Sliding Vane Pumps
LGLH2A Autogas High Pressure Sliding Vane Pumps - LGLH2A / NPT Flanges 2 inch x 2 inch is backordered and will ship as soon as it is back in stock.
Description
Description

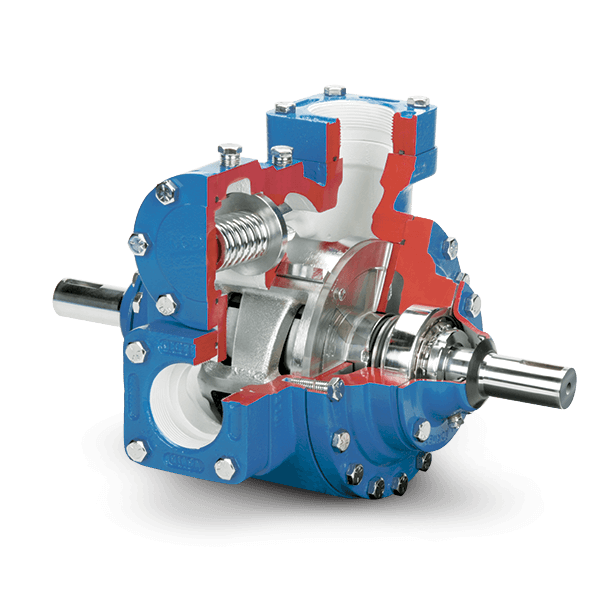

The Blackmer LGLH2A is a ductile iron, high pressure sliding vane pump built for Autogas and anhydrous ammonia service. It is part of Blackmer's Cavitation Line, pairing a high differential pressure design with a cavitation suppression liner so the pump runs fast and quiet even when entrained vapors are present. Replaceable casing liners and end discs allow the pumping chamber to be rebuilt to like new condition, which keeps downtime and life cycle costs low. The pump is listed by Underwriters Laboratory for both LP gas and anhydrous ammonia service.
Features and Benefits
- Listed by Underwriters Laboratory for both LP gas and anhydrous ammonia (NH3) service
- Cavitation suppression liner reduces the noise, vibration and wear normally caused by entrained vapors
- Replaceable casing, liners and end discs allow easy rebuilding of the pumping chamber
- Ductile iron construction with an integral relief valve that protects the pump against excessive pressure
- Blackmer mechanical seal and ball bearing construction for maximum reliability
- External ball bearings isolated from the pumpage by mechanical seals to maximize bearing life
- Symmetrical bearing support assures even loading and wear for long life
- Self adjusting sliding vane design maintains flow rates as the vanes wear
- Excellent self priming, dry run, high suction lift and line stripping capability
- Vanes can be replaced without removing the pump from the piping system
Applications
- High pressure bobtail delivery trucks
- High capacity LPG fueling
- Aerosol filling
- Vaporizer feed
Performance and Specifications
| Available model | LGLH2A |
| Nominal flow rate range | 25 to 90 gpm (94 to 340 L/min) |
| Differential pressure | 190 psi (13.1 bar) |
| Maximum working pressure | 390 psi (26.8 bar) |
| Viscosity range | 0.2 to 10 cP |
| Temperature range | -25 F to 240 F (-32 C to 115 C) |
| Speed range | 350 to 980 rpm |
| Primary material | Ductile iron |
| Connection orientation | Side inlet, top outlet (outlet 90 degrees offset from inlet) |
| Vane material | Duravane |
| Shipping weight | 90 lb (41 kg) |
Dimensions
| Length | 16-15/16 in (430.2 mm) |
| Width | 9-11/16 in (246.1 mm) |
| Height | 10 in (254 mm) |
| Pump weight | 85 lb (38.6 kg) |
Pump weight above is the bare pump. The 90 lb (41 kg) shipping weight shown in the specifications covers the packaged pump as shipped.
Materials of Construction
| Cylinder, heads, relief valve cover | Ductile iron, ASTM 536 |
| Vanes | Duravane, rated -25 F to 240 F (-32 C to 115 C), 0.2 to 10 cP |
| Elastomers | Buna-N, rated -25 F to 240 F (-31 C to 115 C) |
| Mechanical seal | Steel HD, Buna-N, Carbon, Buna-N |
Standard Configuration
Every LGLH2A ships in the following configuration, which is included in the price shown.
| Item | Standard | Code |
|---|---|---|
| Vanes | Duravane | 4 |
| Rotation and shaft | Double ended keyed shaft | 40 |
| Mechanical seal | Steel HD, Buna-N, Carbon, Buna-N | QA |
| Relief valve | Integral, iron | 1 |
| Relief valve spring | Steel, 190 psi | B |
| O-rings | Buna-N | 1 |
| Standard construction fields | Standard | 0000 |
Flange and Connection Options
Choose the flange style with the pump. Both styles are 2 inch by 2 inch and neither carries an additional charge.
| Flange | Code | Notes |
|---|---|---|
| NPT flanges, 2 inch x 2 inch | N | Standard threaded connection |
| Weld flanges, 2 inch x 2 inch | W | For welded piping systems |
Configuration Options
The items below are ordered by phone so the pump is matched to your driver and installation. Call (262) 646-4500 to specify any of them.
| Option | Details |
|---|---|
| Rotation orientation | Right hand (inlet to the right, viewed from the driven side) or left hand (inlet to the left) |
| Mounting | Pump only, direct drive pump and motor, or a complete belt unit |
| V-belt unit assemblies | Base, V-belts, pump and motor sheaves and hubs, and a steel guard, ready to receive the pump and motor. Available in 2.66:1, 3.43:1, 4.23:1 and 5.37:1 ratios for 184T and 213T motor frames, priced separately from the pump and motor |
| Hydraulic motor adapter kit | SAE A flange adapter, coupling and hardware for hydraulic drive |
| Certificates | Hydrostatic test, performance test, NPSH test, material and dimensional certificates |
Maintenance Kits
| Part Number | Description |
|---|---|
| 899221 | Maintenance kit, NH3 or dual service (QA seal) |
| 899121 | Rebuild kit, NH3 or dual service (QA seal) |
Call to Order (262) 646-4500 for anything not listed above.
Replacement Parts
Individual LGLH2A wear and service parts are stocked and sold separately.
| Part Number | Description |
|---|---|
| 091419 | Duravane vane (six per pump) |
| 264446 | Rotor and shaft assembly |
| 184405 | Cavitation suppression liner |
| 064412 | Disc |
| 014405 | Casing |
| 034416 | Head |
| 334439 | Mechanical seal assembly |
| 454405 | Relief valve |
| 414401 | Relief valve cover |
| 654401 | NPT flange |
| 654405 | Weld neck flange, 2 inch |
| 123905 | Push rod |
| 041431 | Bearing cover |
| 383940 | Bearing cover gasket |
| 903521 | Bearing locknut |
| 903522 | Bearing lock washer |
| 903091 | Locknut tool |
| 702022 | Head o-ring |
| 331918 | Grease seal |
Call to Order (262) 646-4500 for any part not listed above.
Literature
- Installation and Operation Manual, LGLH2A (501-J00)
- Parts List, LGLH2A (501-J01)
- Dimensional Drawing, LGL Series (501-111)
- Materials of Construction, Liquefied Gas Pumps (501-094)
- Performance Curves, LGLH2 (501-025)
- Performance Curves, LG, LGL and TLGL Series (501-021)
- Brochure, LGLH2 High Pressure LPG Pump (501-005)
- Brochure, Liquefied Gas Pumps and Compressors (501-001)
- ATEX Declaration of Conformity (Form 617)
Blackmer Pumps is an authorized Blackmer distributor. For help sizing an LGLH2A for your Autogas or anhydrous ammonia application, matching it to a driver, or building a complete belt or direct drive unit, call (262) 646-4500.
Other Pumps in This Family
Blackmer's LP-gas pump family also includes the 1 inch LG1 Series Sliding Vane Pumps, the LGL Series 1.25 inch to 1.5 inch Ductile Iron Pumps, and the LGL Series 2 inch to 4 inch Ductile Iron Pumps. Call (262) 646-4500 for help selecting the right pump for your application.
