STX-DEF Series Sliding Vane Pumps
STX-DEF Series Sliding Vane Pumps - STX2A-DEF / 51 to 75 psi / Butt Weld Flanges is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
We ship in stock items same day. If it needs to be ordered we will ship it out to you the day it arrives.
STX-DEF Series Sliding Vane Pumps
STX-DEF Series Sliding Vane Pumps - STX2A-DEF / 51 to 75 psi / Butt Weld Flanges is backordered and will ship as soon as it is back in stock.
Description
Description

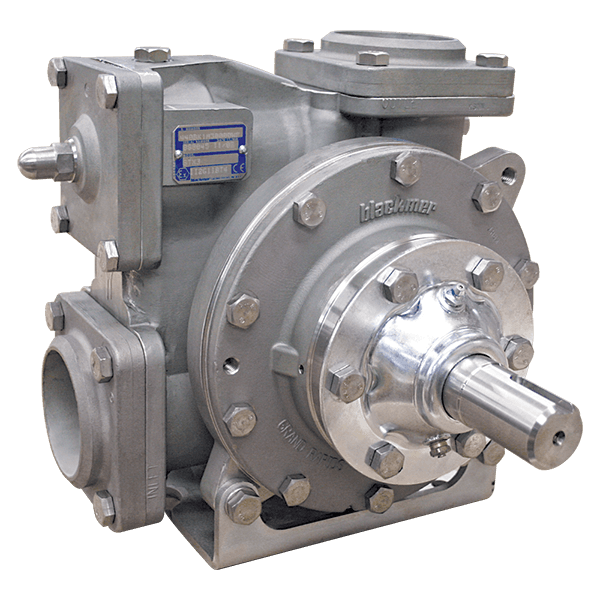

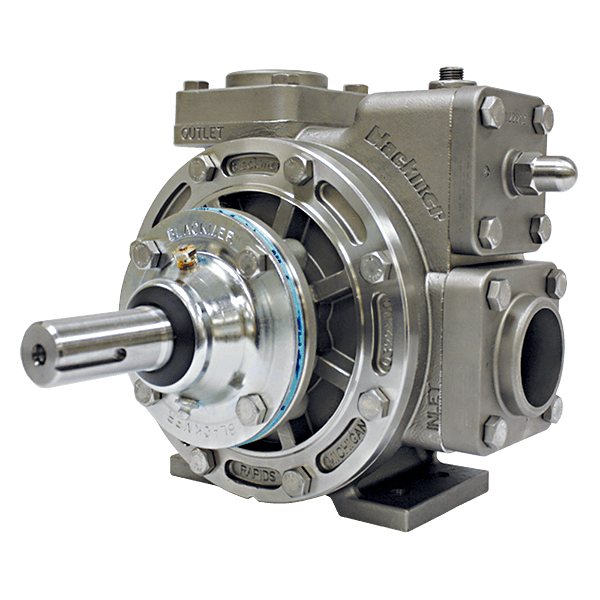

Blackmer STX-DEF Series pumps are 316 stainless steel sliding vane pumps built and certified for Diesel Exhaust Fluid service. Every pump is tested with de-ionized water and meets or exceeds the industry specifications for DEF aqueous urea solutions (AUS32), also known as AdBlue. Construction includes external ball bearings, non-metallic Duravanes, PTFE elastomers, Blackmer chemical mechanical seals, an integral adjustable relief valve and a double-ended keyed shaft.
Sliding vane technology is what makes these pumps well suited to fast off-loading. The vanes self-compensate as they wear, so flow rates hold up over the life of the pump, and the design self-primes and will run dry for short periods to strip suction lines clean without damage. A 6,000 gallon (22,700 liter) tanker can be off-loaded in as little as 24 minutes with an STX3-DEF. Internal wear is limited almost entirely to the vanes themselves, which can be replaced with ordinary hand tools without pulling the pump out of the piping.
Models and Performance
| Model | Nominal Flow Rate | Viscosity Range | Speed | Shipping Weight |
|---|---|---|---|---|
| STX2A-DEF | 16 to 60 gpm (61 to 227 L/min) | 0.2 to 990 cP | 150 to 800 rpm | 70 lb (32 kg) |
| STX1220A-DEF | 45 to 92 gpm (170 to 348 L/min) | 0.2 to 22 cP | 700 to 1,200 rpm | 70 lb (32 kg) |
| STX3-DEF | 80 to 250 gpm (303 to 946 L/min) | 0.2 to 4,250 cP | 300 to 800 rpm | 132 lb (60 kg) |
All three models share the same pressure and temperature limits: 125 psi (8.6 bar) maximum differential pressure, 175 psi (12.1 bar) maximum working pressure, and a temperature range of -25°F to 240°F (-32°C to 115°C).
Features and Benefits
- Meets or exceeds all industry specifications for DEF aqueous urea solutions (AUS32) and AdBlue
- 316 stainless steel cylinder, heads and relief valve cover with external ball bearing construction
- Blackmer chemical mechanical seals and non-metallic Duravanes for long life in corrosive service
- Integral adjustable relief valve protects the pump against excessive pressure
- Self-adjusting vanes maintain flow rates as they wear
- Excellent self-priming and dry-run capability for line stripping and blowing lines clean
- Pump design minimizes shear and agitation of the fluid
- Vanes replace with ordinary hand tools, without removing the pump from the piping system
- High suction lift, low maintenance and low life-cycle cost
Ordering Options
Three choices are made on this page. Model sets the pump size and capacity. Relief valve spring sets the pressure range the integral relief valve is set to protect against, and all three ranges are offered at no additional cost. Flange selection determines whether the pump ships with its butt weld flange set or without flanges, for customers welding to existing hardware.
| Option | Choices | Notes |
|---|---|---|
| Size or Model | STX2A-DEF, STX1220A-DEF, STX3-DEF | Select by required flow rate and viscosity |
| Relief Valve Spring | 51 to 75 psi, 76 to 110 psi, 111 to 125 psi | Stainless steel spring, no cost difference between ranges |
| Flange | Butt Weld Flanges, Less Flanges | Butt weld flanges are 2 inch on STX2A-DEF and STX1220A-DEF, 3 inch on STX3-DEF |
Standard Construction
The following ship standard on every STX-DEF pump and are not selectable options. Call (262) 646-4500 to discuss any application that needs something different.
| Item | Standard Specification |
|---|---|
| Vanes | Duravane, non-metallic, 4 per pump on STX2A-DEF and STX1220A-DEF, 6 per pump on STX3-DEF |

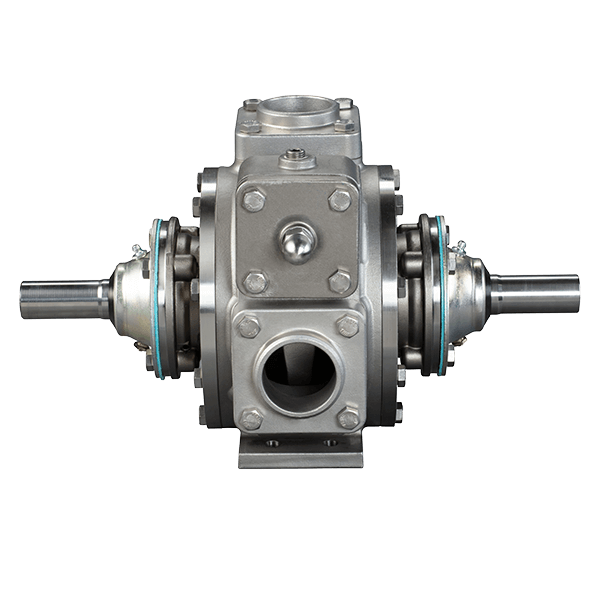

| Rotation | Double-ended keyed shaft |
| Mechanical Seal | Blackmer chemical mechanical seal, silicon carbide stationary seat with carbon rotating face and PTFE seal ring |
| Relief Valve | Integral adjustable relief valve |
| O-Rings and Elastomers | PTFE with stainless steel spring |
| Porting | Side inlet, top outlet, outlet offset 90 degrees from inlet |
| Orientation | Right hand, inlet to the right when viewed from the driven side |
| Connections | Stainless steel butt weld, 2 inch on STX2A-DEF and STX1220A-DEF, 3 inch on STX3-DEF |
| Mounting | Pump only. Complete units with motor, baseplate, couplings and guards are available, Call to Order (262) 646-4500 |
| Hydraulic Motor Adapter | Available for all three models, Call to Order (262) 646-4500 |
Dimensions
| Model | Length | Width | Height | Pump Weight |
|---|---|---|---|---|
| STX2A-DEF, STX1220A-DEF | 16-3/4 in (425.4 mm) | 9-4/7 in (242.9 mm) | 8-2/3 in (220.6 mm) | 70 lb (32 kg) |
| STX3-DEF | 20-2/3 in (524.5 mm) | 12-5/8 in (320.8 mm) | 11-5/9 in (293.7 mm) | 132 lb (60 kg) |
Materials of Construction
| Part | Material |
|---|---|
| Cylinder, heads, relief valve cover | 316 stainless steel, ASTM A743 CF-8M |
| Vanes | Duravane, non-metallic |
| Elastomers and o-rings | PTFE with stainless steel spring |
| Bearings | External ball bearings |
Maintenance Kits
Blackmer publishes one maintenance kit per model. Each kit covers the wear items called out in the parts list for that pump, including vanes, bearings, mechanical seals, o-rings, gaskets, the shaft key and the push rod.
| Model | Maintenance Kit | Availability |
|---|---|---|
| STX2A-DEF | 898992 | Call to Order (262) 646-4500 |
| STX1220A-DEF | 898993 | Call to Order (262) 646-4500 |
| STX3-DEF | 898989 | Call to Order (262) 646-4500 |
Replacement Parts
Individual wear and service parts we stock for the STX-DEF Series. Call (262) 646-4500 for anything not listed here.
STX2A-DEF and STX1220A-DEF
| Part Number | Description |
|---|---|
| 091419 | Duravane vane, 4 per pump |
| 262221 | Rotor and shaft assembly, STX2A-DEF |
| 262220 | Rotor and shaft assembly, STX1220A-DEF |
| 332221 | Mechanical seal, complete |
| 903156 | Ball bearing, 2 per pump |
| 903583 | Locknut with set screw, 2 per pump |
| 042220 | Bearing cover |
| 123907 | Push rod |
| 022220 | Cylinder |
| 032220 | Head, 2 per pump |
| 452200 | Relief valve |
| 412220 | Relief valve cover |
| 432220 | Relief valve adjusting screw |
| 471418 | Relief valve spring, 51 to 75 psi |
| 471427 | Relief valve spring, 76 to 110 psi |
| 471429 | Relief valve spring, 111 to 125 psi |
| 651433 | 2 inch weld flange, 2 per pump |
STX3-DEF
| Part Number | Description |
|---|---|
| 094500 | Duravane vane, 6 per pump |
| 262225 | Rotor and shaft assembly |
| 332260 | Mechanical seal, complete |
| 903172 | Ball bearing, 2 per pump |
| 903582 | Locknut with set screw, 2 per pump |
| 042225 | Bearing cover |
| 122225 | Push rod, 3 per pump |
| 022225 | Cylinder |
| 032227 | Head, 2 per pump |
| 415301 | Relief valve cover |
| 471632 | Relief valve spring, 51 to 110 psi |
| 471615 | Relief valve spring, 111 to 125 psi |
| 652201 | 3 inch weld flange, 2 per pump |
| 892228 | Hydraulic motor adapter kit |
Literature and Documentation
- Installation, Operation and Maintenance Manual, STX Series (203-A00)
- Parts List, STX2A and STX2A-DEF (203-A04)
- Parts List, STX1220A and STX1220A-DEF (203-A03)
- Parts List, STX3 and STX3-DEF (203-A01)
- Brochure, STX Series Sliding Vane Pumps (203-001)
- Materials of Construction, Truck Pumps (203-091)
- Dimensional Drawing, STX2A and STX1220A (203-103)
- Dimensional Drawing, STX3 (203-101)
- Performance Curves, STX2A and STX2A-DEF (203-023)
- Performance Curves, STX1220A and STX1220A-DEF (203-021)
- Performance Curves, STX3 (203-025)
- ATEX Declaration of Conformity for Blackmer Vane Pumps (Form 617)
Applications
- Loading and unloading Diesel Exhaust Fluid (DEF) and AdBlue
- Railcar and tank truck off-loading at DEF terminals
- Tank to tank transfer
- Filling drums, totes and mini-bulk tanks, with a bypass line or variable frequency drive
For smaller DEF flow rates of 2 to 10 gpm (8 to 38 L/min), the Blackmer SX1B-DEF Series pump is the better fit. Call (262) 646-4500 and we will help you size the right pump for your flow rate, viscosity and pressure.
Supplied by KI Pumps of Waukesha, Wisconsin, an authorized Blackmer distributor recognized worldwide as a leading supplier of positive displacement and sliding vane pumps and their parts. Call (262) 646-4500 to order or for application assistance.
