Blackmer X and XH Series sliding vane pumps are positive displacement rotary pumps for the loading, unloading, blending and transfer of clean, thin liquids. The sliding vane design self-adjusts for wear, so the pump holds its rated flow over a long service life instead of falling off the way a fixed-clearance rotary pump does. High suction lift and line stripping make these pumps well suited to underground tank service, bulk plant transfer, terminal loading and aircraft refueling.
This page covers the 2 inch through 4 inch models: capacities from 10 to 528 GPM, differential pressure to 125 PSI, viscosity from 0.2 to 4,250 cP, and temperatures from -25 F to 300 F. All models use external ball bearings isolated from the pumped liquid by a Blackmer single mechanical seal, an adjustable internal relief valve, and a single ended keyed shaft.
Two Porting Orientations, One Series
The X and XH models are the same pump platform with two different port arrangements, priced identically and sharing every option, kit and replacement part:

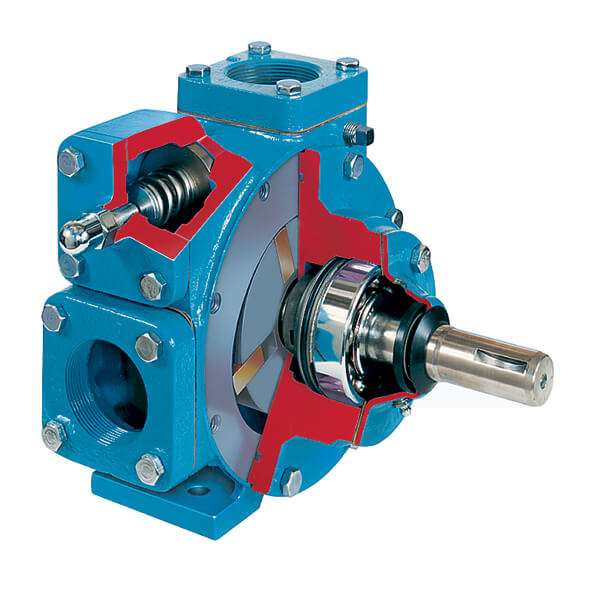

- X models (X2B, X2.5B, X3E, X4B-N) have a 90 degree porting orientation: side inlet with a top outlet.
- XH models (XH2B, XH2.5B, XH3E, XH4B) have a 180 degree porting orientation: side inlet with a side outlet directly opposite.
Choose the orientation that matches your piping run. The 2 inch, 2.5 inch and 3 inch models are cast iron; the 4 inch models (X4B-N and XH4B) are ductile iron. Blackmer's dimensional drawings, parts lists and kit tables refer to the X4B-N as the X4B.
Models and Capacities
| Model | Porting | Port Size | Nominal Flow | Max Speed | Material | Vanes | Shipping Weight |
|---|---|---|---|---|---|---|---|
| X2B | 90 degree, top outlet | 2 in | 10 to 82 GPM (38 to 311 L/min) | 780 RPM | Cast iron | 4 | 72 lb (33 kg) |
| X2.5B | 90 degree, top outlet | 2.5 in | 20 to 148 GPM (76 to 562 L/min) | 780 RPM | Cast iron | 6 | 92 lb (42 kg) |
| X3E | 90 degree, top outlet | 3 in | 60 to 270 GPM (227 to 1,022 L/min) | 640 RPM | Cast iron | 6 | 150 lb (68 kg) |
| X4B-N | 90 degree, top outlet | 4 in | 220 to 528 GPM (833 to 2,000 L/min) | 520 RPM | Ductile iron | 6 | 310 lb (141 kg) |
| XH2B | 180 degree, side outlet | 2 in | 10 to 82 GPM (38 to 311 L/min) | 780 RPM | Cast iron | 4 | 72 lb (33 kg) |
| XH2.5B | 180 degree, side outlet | 2.5 in | 20 to 148 GPM (76 to 562 L/min) | 780 RPM | Cast iron | 6 | 92 lb (42 kg) |
| XH3E | 180 degree, side outlet | 3 in | 60 to 270 GPM (227 to 1,022 L/min) | 640 RPM | Cast iron | 6 | 150 lb (68 kg) |
| XH4B | 180 degree, side outlet | 4 in | 220 to 528 GPM (833 to 2,000 L/min) | 520 RPM | Ductile iron | 6 | 310 lb (141 kg) |
Minimum speed is 70 RPM on every model. Shipping weights are Blackmer's published figures for the pump as ordered.
Specifications
| Specification | All X and XH 2 inch to 4 inch Models |
|---|---|
| Differential pressure | 125 PSI (8.6 bar) |
| Maximum working pressure | 175 PSI (12.1 bar) |
| Viscosity range | 0.2 to 4,250 cP with Duravanes, to 8,500 cP with laminate vanes |
| Temperature range | -25 F to 300 F (-32 C to 148 C), Duravanes limited to 240 F (115 C) |
| Speed range | 70 to 780 RPM depending on model |
| Sealing | Blackmer single mechanical seal, two per pump |
| Bearings | External ball bearings, isolated from the pumped liquid |
| Shaft | Single ended keyed shaft, high strength steel |
| Relief valve | Adjustable internal relief valve, iron, fitted as standard |
| Rotation | Right hand (clockwise viewed from the driven end) as standard |
Mechanical Seal Options
Every pump on this page ships with two Blackmer single mechanical seals. Select the seal materials that suit your liquid:
| Code | Seal Materials | Designation | Typical Service |
|---|---|---|---|
| C0 | Iron / FKM / Carbon / FKM | IVCV | Standard. Fuel oil, gasoline, diesel, lube oil and most petroleum products |
| AZ | Iron / PTFE / Carbon / PTFE | IACT | Solvents, ketones, ethers and aromatics that attack FKM |
| WA | Stainless Steel / PTFE / Carbon / PTFE | WACT | Aggressive solvents and amines needing a stainless steel seal body |
| A0 | Iron / Buna-N / Carbon / Buna-N | INCN | Water based liquids, glycols and low temperature service |
Flange and Connection Options
All six connection options are available on all eight models. NPT flanges are standard.
| Code | Connection | 2 inch Models | 2.5 inch Models | 3 inch Models | 4 inch Models |
|---|---|---|---|---|---|
| N | NPT flanges, gasket and cap screws (standard) | 2 in NPT | 2.5 in NPT | 3 in NPT | 4 in NPT |
| W | Weld flanges, o-ring and cap screws | 2 in weld | 2.5 in weld | 3 in weld | 4 in weld |
| C | Gasket and cap screws only, NPT pattern, no flanges | Yes | Yes | Yes | Yes |
| B | Gasket and cap screws only, weld pattern, no flanges | Yes | Yes | Yes | Yes |
| A | ANSI Class 150 raised face flange adapters | 2 in ANSI | 3 in ANSI | 3 in ANSI | 4 in ANSI |
| X | No flanges, cap screws or gaskets supplied | Yes | Yes | Yes | Yes |
The 2.5 inch pumps take a 3 inch ANSI flange adapter, one size above the port. Dimensional drawing 101-113 covers the ANSI flange adapters for every model.
Configuration Options
The options below are set when the pump is built. Call (262) 646-4500 to specify any of them and we will build the order to your specification.
| Option | Choices | Standard |
|---|---|---|
| Vane material | Duravane, laminate (extra clearance), iron (extra clearance, not available on the 2 inch models) | Duravane |
| Rotation | Right hand (clockwise) or left hand (counterclockwise), viewed from the driven end, at no cost either way | Right hand |
| Relief valve | Iron or corrosion resistant | Iron |
| Relief valve spring | Steel springs covering 35 to 125 PSI depending on model, and a stainless steel 76 to 110 PSI spring for the 2 inch models. Call to specify your required pressure range | Set to the standard range for the model ordered |
| O-rings | Fluorocarbon (FKM), PTFE or Buna-N, for the pump body and flanges | Fluorocarbon (FKM) |
| Integrated unit assembly | Pump, gear reducer, motor, baseplate, couplings and coupling guards, aligned and ready to install. Drive ratios from 2.15:1 to 9.51:1 depending on model and motor frame | Pump only |
Integrated Unit Assemblies
Every model on this page is also available as a fully integrated unit assembly: the pump mounted with a Nord gear reducer, motor, baseplate, couplings and coupling safety guards on a common base, aligned at the factory and ready to drop in. Gear reducer selections are the SK 571.1-W for the 2 inch pumps, the SK 771.1-W for the 2.5 inch pumps, the SK 871.1-W for the 3 inch pumps and the SK 52-W for the 4 inch pumps, in motor frames from 182T through 326T. Call (262) 646-4500 with your required flow rate, motor frame and voltage and we will quote the matching assembly.
Dimensions and Pump Weights
Blackmer's published pump only dimensions and weights. These are bare pump figures and differ from the shipping weights shown in the model table above.
| Model | Length | Width | Height | Pump Weight |
|---|---|---|---|---|
| X2B | 15-1/4 in (387.4 mm) | 9-3/4 in (247.7 mm) | 8-2/3 in (211.6 mm) | 70 lb (32 kg) |
| X2.5B | 14-3/4 in (374.7 mm) | 10-11/16 in (270.8 mm) | 9-5/8 in (244.7 mm) | 93 lb (42 kg) |
| X3E | 16 in (406.4 mm) | 13-7/16 in (341.4 mm) | 12-1/4 in (311.2 mm) | 152 lb (69 kg) |
| X4B-N | 19-1/8 in (486.4 mm) | 16-1/2 in (419.1 mm) | 15-1/2 in (393.7 mm) | 275 lb (125 kg) |
| XH2B | 13-1/4 in (336.6 mm) | 10-1/16 in (255.0 mm) | 8-7/8 in (224.8 mm) | 65 lb (29 kg) |
| XH2.5B | 14-3/4 in (374.7 mm) | 11-1/8 in (283.2 mm) | 9-4/5 in (248.9 mm) | 85 lb (39 kg) |
| XH3E | 16 in (406.4 mm) | 14-1/3 in (363.9 mm) | 12-1/16 in (306.3 mm) | 137 lb (62 kg) |
| XH4B | 19-1/16 in (484.1 mm) | 17-15/16 in (455.7 mm) | 15-9/16 in (394.9 mm) | 292 lb (132 kg) |
Maintenance Kits
One maintenance kit covers each port size, in both porting orientations. Each kit carries the vanes, mechanical seals, o-rings, gaskets and push rods for a full service.
| Models | Kit | Part Number |
|---|---|---|
| X2B, XH2B | Maintenance Kit | 898956 |
| X2.5B, XH2.5B | Maintenance Kit | 898957 |
| X3E, XH3E | Maintenance Kit | 898958 |
| X4B-N, XH4B | Maintenance Kit | 898959 |
Kit contents follow the seal and elastomer materials your pump was built with. Call (262) 646-4500 with your pump serial number and we will confirm the right kit for your build.
Replacement Parts
Individually stocked wear parts, for the repair that does not need a full kit.
| Part | Models | Part Number |
|---|---|---|
| Vane, Duravane | X2B, XH2B (4 per pump) | 091419 |
| Vane, Duravane | X2.5B, XH2.5B (6 per pump) | 091619 |
| Vane, Duravane | X3E, XH3E (6 per pump) | 091819 |
| Vane, Duravane | X4B-N, XH4B (6 per pump) | 091924 |
| Rotor and shaft assembly | X2B, XH2B | 261426 |
| Rotor and shaft assembly | X2.5B, XH2.5B | 261667 |
| Rotor and shaft assembly | X3E, XH3E | 261839 |
| Rotor and shaft assembly | X4B-N, XH4B | 261950 |
| Cylinder | X2B | 021403 |
| Cylinder | X2.5B | 021605 |
| Cylinder | X3E | 021805 |
| Cylinder | X4B-N | 021906 |
| Cylinder | XH4B | 021915 |
| Cylinder | XH2B, XH2.5B, XH3E | Call to Order (262) 646-4500 |
| Mechanical seal, IVCV standard | X2.5B, XH2.5B | 331655 |
| Mechanical seal, IVCV standard | X3E, XH3E | 331883 |
| Mechanical seal, IVCV standard | X4B-N, XH4B | 336982 |
| Mechanical seal, IACT | X2.5B, XH2.5B | 331673 |
| Ball bearing | X2B, XH2B, X2.5B, XH2.5B (2 per pump) | 903156 |
| Ball bearing | X3E, XH3E (2 per pump) | 903172 |
| Ball bearing | X4B-N, XH4B (2 per pump) | 903182 |
| NPT flange gasket | X2B, XH2B | 381421 |
| NPT flange gasket | X2.5B, XH2.5B | 381650 |
| NPT flange gasket | X3E, XH3E | 381816 |
| NPT flange gasket | X4B-N, XH4B | 381904 |
| Head o-ring, FKM | X2B, XH2B, X2.5B, XH2.5B | 701914 |
| Head o-ring, FKM | X3E, XH3E | 711938 |
| Head o-ring, FKM | X4B-N, XH4B | 702024 |
| Relief valve | X3E, XH3E | 451807 |
| Relief valve spring, 51 to 75 PSI | X2B, XH2B | 471420 |
| Relief valve spring, 51 to 110 PSI | X3E, XH3E | 471806 |
| Locknut tool | X2B, XH2B, X2.5B, XH2.5B, X3E, XH3E | 903091 |
For any other part, Call to Order (262) 646-4500.
Literature and Documentation
| Document | Number | Coverage |
|---|---|---|
| Installation, Operation and Maintenance Manual | 101-B00 | All X and XH models |
| X Series Brochure | 101-003 | X2, X2.5, X3, X4 |
| Materials of Construction | 101-095 | All X and XH models |
| Performance Curves | 101-025 | X2, XH2 |
| Performance Curves | 101-027 | X2.5, XH2.5 |
| Performance Curves | 101-029 | X3, XH3 |
| Performance Curves | 101-031 | X4, XH4 |
| Dimensional Drawing | 101-109 | X2B |
| Dimensional Drawing | 101-110 | X2.5B |
| Dimensional Drawing | 101-111 | X3E |
| Dimensional Drawing | 101-112 | X4B |
| Dimensional Drawing | 101-119 | XH2B |
| Dimensional Drawing | 101-120 | XH2.5B |
| Dimensional Drawing | 101-121 | XH3E |
| Dimensional Drawing | 101-122 | XH4B |
| ANSI Flange Adapter Drawing | 101-113 | All X and XH models |
| Parts List | 101-B05 | X2B |
| Parts List | 101-B06 | X2.5B |
| Parts List | 101-B07 | X3E |
| Parts List | 101-B08 | X4B |
| Parts List | 101-B15 | XH2B |
| Parts List | 101-B16 | XH2.5B |
| Parts List | 101-B17 | XH3E |
| Parts List | 101-B18 | XH4B |
| Integrated Unit Assemblies Brochure | 011-050 | Unit assemblies |
| Nord Gearbox Ratings | 109-002 | Unit assemblies |
| Unit Assembly Parts List | 101-H11 | X2 unit assembly |
| Unit Assembly Parts List | 101-H12 | X2.5 unit assembly |
| Unit Assembly Parts List | 101-H13 | X3 unit assembly |
| Unit Assembly Parts List | 101-H14 | X4 unit assembly |
| ATEX Declaration of Conformity | FORM 617 | All Blackmer vane pumps |
We are an authorized Blackmer distributor and stock the X and XH Series along with the vanes, seals, kits and replacement parts that keep them running. If you need help matching a pump to your flow rate, liquid and piping layout, or you want a quote on a complete integrated unit assembly, call us at (262) 646-4500.
Other Pumps in This Family
The Blackmer X family also includes the compact 1 inch X1 Series Sliding Vane Pumps. Call (262) 646-4500 for help selecting the right pump for your application.
