TXD Series Sliding Vane Pumps

$ 2,151.00 $ 2,390.00
Size or Model
Seal
Flange

TXD Series Sliding Vane Pumps - TX1.5 / C0 - Iron/FKM/Carbon/FKM (Std) / 0 - NPT Tapped (1.5") is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

We ship in stock items same day. If it needs to be ordered we will ship it out to you the day it arrives.

If you have any questions you can reach us at (262) 646.4500 or click here

Description

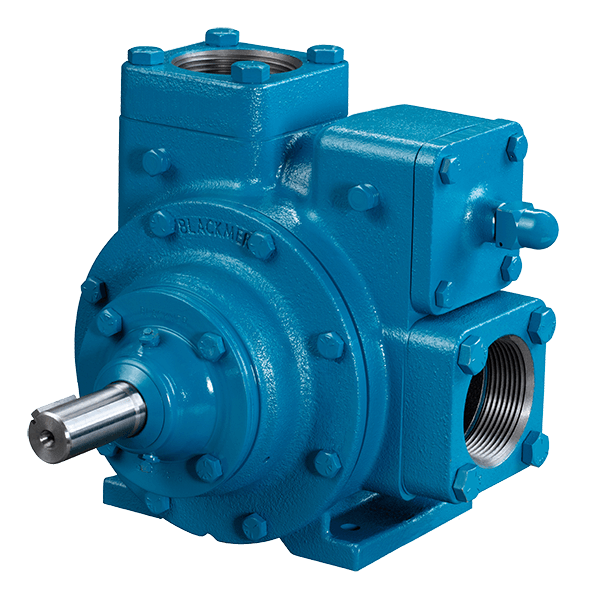

Blackmer TXD Series sliding vane pumps are the industry standard for fuel truck and transport applications. Built from cast iron with external ball bearings and Blackmer mechanical seals, these pumps deliver fast, quiet operation and are compatible with all biodiesel and ethanol blends. The double-ended drive shaft on 2", 2.5", and 3" models allows clockwise or counterclockwise installation without modification.

The TX1.5 model uses a single-ended shaft with NPT tapped connections. The TXD2A, TXD2.5A, and TXD3E models feature a double-ended drive shaft and accept NPT flanges, weld flanges, gasket-only configurations, or no flanges. The TX4A is a larger-displacement model with single-ended shaft and a full range of flange options. When a single-ended shaft is selected on the 2", 2.5", or 3" models, the model designation changes from TXD to TX (e.g., TXD2A becomes TX2A).

Air-Operated Relief Valve Models (AVA and AVC)

The TXD2A-AVA, TXD2.5A-AVA, TXD2.5A-AVC, and TXD3E-AVA models are TXD pumps factory-equipped with an air-operated relief valve, for tanker truck applications where bypass pressure control during hose handling and nozzle operation is critical. The air-operated relief valve works in conjunction with commercially available flow detectors or flow-sensing valves to reduce discharge line pressure under bypass conditions, making one-person unloading operations safer and easier. Select these models from the Size or Model menu above.

Two valve configurations are available. The AVA (Air-Operated Diaphragm Relief Valve) uses a diaphragm-style valve with Buna-N seals and an iron valve body. The AVC (Air-Operated Piston Relief Valve) uses a piston-style valve with FKM seals and a nickel-plated valve body. Both operate on a 70–125 psi air signal spring range. All AV models use the standard double-ended drive shaft for clockwise or counterclockwise installation. Standard seal varies by model: the AVA models ship standard with the A0 Iron/Buna-N/Carbon/Buna-N seal, and the TXD2.5A-AVC ships standard with the C0 Iron/FKM/Carbon/FKM seal. Each AV model shares the flow rating, dimensions, and shipping weight of the corresponding base model.

Features

  • External ball bearings support the rotor from both sides for symmetrical loading and long service life
  • Blackmer mechanical seals isolated from bearing cavity for extended dry run capability
  • Adjustable internal relief valve protects against excess pressure
  • Vanes can be replaced without removing the pump from the truck
  • Self-adjusting vane design maintains near-original flow through most of service life
  • Compatible with all biodiesel and ethanol blends
  • T-type strainer available as an accessory to protect against welding slag and foreign matter

Applications

Fuel oil, gasoline, jet fuel, ethanol and alcohol blends, lube oil, solvents, esters, ketones, naphtha, aromatic and glycol compounds. Designed for tanker truck unloading, transport delivery, fleet refueling, and bulk transfer. The AVA and AVC models add pressure-reducing bypass control for single-operator use.

Specifications

Model Nominal Flow Shipping Wt. Approx. Pump Wt.
TX1.5 56 gpm (212 L/min) 61 lb (28 kg) 61 lb (28 kg)
TXD2A / TX2A / TXD2A-AVA 87 gpm (329 L/min) 74 lb (34 kg) 70 lb (32 kg)
TXD2.5A / TX2.5A / TXD2.5A-AVA / TXD2.5A-AVC 157 gpm (594 L/min) 94 lb (43 kg) 94 lb (43 kg)
TXD3E / TX3E / TXD3E-AVA 270 gpm (1,022 L/min) 152 lb (69 kg) 152 lb (69 kg)
TX4A 505 gpm (1,911 L/min) 310 lb (141 kg) 295 lb (134 kg)

Max differential pressure: 125 psi (8.6 bar). MAWP: 175 psi (12.1 bar). Speed range: 70–800 rpm (model dependent). Temperature range: −25°F to 240°F (−32°C to 115°C).

Dimensions

Model L (in) W (in) H (in)
TX1.5 12-7/8 10-4/7 8-1/2
TXD2A 16-3/4 10 8-11/16
TXD2.5A 18-1/4 10-3/4 9-5/8
TXD3E 20-1/3 13-1/2 12-4/5
TX4A 19-1/4 16-1/2 15-1/2

Configuration Options

The options below require a phone order. Call (262) 646-4500 to specify.

Option Choices Notes
Rotation Double-Ended (Std on 2"/2.5"/3"); Single-Ended Right-hand CW (Std on TX4A); Single-Ended Left-hand CCW Selecting single-ended on TXD2A/2.5A/3E renames model to TX2A/2.5A/3E. Double-Ended Stainless Steel shaft available on TXD2.5A (+$1,670); requires Corrosion Resistant RV.
Relief Valve Iron (Std); Corrosion Resistant (+$106–$242 depending on model) Air-operated relief valve versions are sold on this page as the AVA and AVC models in the Size or Model menu.
Relief Valve Spring Multiple ranges, 36–125 psi (all $0) Call to specify required pressure range.
O-Rings FKM (Std on TX1.5–TXD3E); Buna-N ($0 all models); PTFE (+$274–$548) Seal O-ring and O-ring material must match. FKM not available on TX4A.
Vanes Duravane (Std all models)
Accessories T-Type Strainer (+$306 on TXD2A/2.5A; +$459 on TXD3E); Hydraulic Motor Adapter Kit Strainer not available on TX1.5 or TX4A.
Victaulic Flanges Multiple Victaulic options ($74 each) for TXD2A, TXD2.5A, and TXD3E Not available on TX1.5 or TX4A. Call to specify inlet/outlet size combination.

Maintenance Kits

Model(s) Kit Type Part Number
TX1.5 Maintenance Kit, Buna-N 898949
TX1.5 Maintenance Kit, FKM 899179
TXD2A, TX2A, TXD2A-AVA Maintenance Kit, Buna-N 898950
TXD2A, TX2A, TXD2A-AVA Maintenance Kit, FKM 898956
TXD2.5A, TX2.5A, TXD2.5A-AVA, TXD2.5A-AVC Maintenance Kit, Buna-N 898951
TXD2.5A, TX2.5A, TXD2.5A-AVA, TXD2.5A-AVC Maintenance Kit, FKM 898957
TXD3E, TX3E, TXD3E-AVA Maintenance Kit, Buna-N 898952
TXD3E, TX3E, TXD3E-AVA Maintenance Kit, FKM 898958
TX4A Maintenance Kit, Buna-N 898953
TX4A Maintenance Kit, FKM 898959

Literature

Other Pumps in This Family

Blackmer's TX truck pump family also includes the TXDI Series Sliding Vane Pumps, the high speed TXD1200 Series Sliding Vane Pumps, and the TXH Series Sliding Vane Pumps. Call (262) 646-4500 for help selecting the right pump for your application.
