Blackmer  |  SKU: SNP1.25/4/1R/G0/0/0/3/0/0/0/0/0/X/0
$ 1,009.00 off

SNP Series Sliding Vane Pumps

$ 9,081.00 $ 10,090.00
Size or Model
Seal
Heating Jacket

Delivery and Shipping

We ship in stock items same day. If it needs to be ordered we will ship it out to you the day it arrives.

If you have any questions you can reach us at (262) 646.4500 or click here

Description

The SNP Series is Blackmer's Stainless Line of sliding vane pumps, built from 316 stainless steel on all significant wetted parts for handling corrosive or caustic liquids. Sliding vanes and reversible carbon discs are nonmetallic, which reduces friction and eliminates the galling that can occur in all-stainless vane pump designs. The line spans 5 sizes with port sizes from 1-1/4 in to 3 in, flows from 3 to 275 gpm, temperatures to 350 degrees F, and relief valve pressures to 150 psi. Heating jackets are available on select models to protect bearings and seals from cold start-up on high-viscosity products.

  • 316 stainless-steel construction with metalized carbon sleeve bearings and non-metallic vanes for longer life with corrosive products
  • Nonmetallic sliding vanes and reversible carbon discs reduce friction and eliminate galling
  • Shaft stuffing box accommodates most standard aftermarket mechanical seal configurations
  • Jacketed pump head option available on SNP1.25, SNP1.5, and SNP2 for high-temperature start-up
  • Adjustable relief valve protects the pump against excessive pressures (integral relief valve standard on SNP3A)
  • Self-adjusts for wear to maintain flow rates, with excellent self-priming and dry-run capabilities
  • Easy maintenance: vanes can be replaced without removing the pump from the piping system

Available Models

Model Port Size Nominal Flow Range Max Differential Pressure Starting Price Shipping Weight

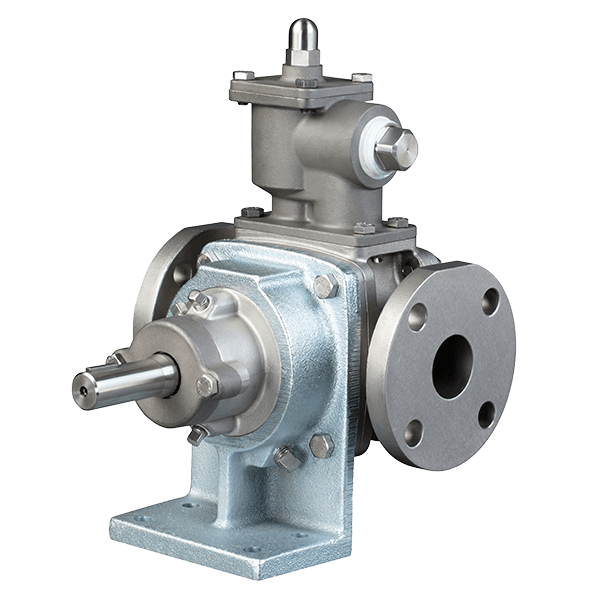

SNP1.25 1-1/4 in NPT 4 - 14 gpm (15 - 53 L/min) 150 psi (10.3 bar) $9,333.25 45 lb (20 kg)
SNP1.5 1-1/2 in NPT 8 - 32 gpm (30 - 121 L/min) 150 psi (10.3 bar) $10,979.75 45 lb (20 kg)

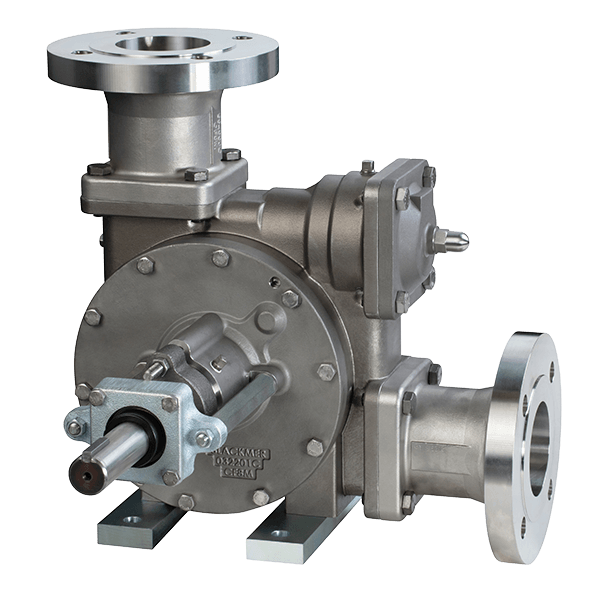

SNP2 2 in NPT 12 - 75 gpm (46 - 284 L/min) 150 psi (10.3 bar) $15,919.25 72 lb (33 kg)
SNP2.5 2-1/2 in NPT 46 - 134 gpm (174 - 507 L/min) 150 psi (10.3 bar) $23,069.50 120 lb (54 kg)

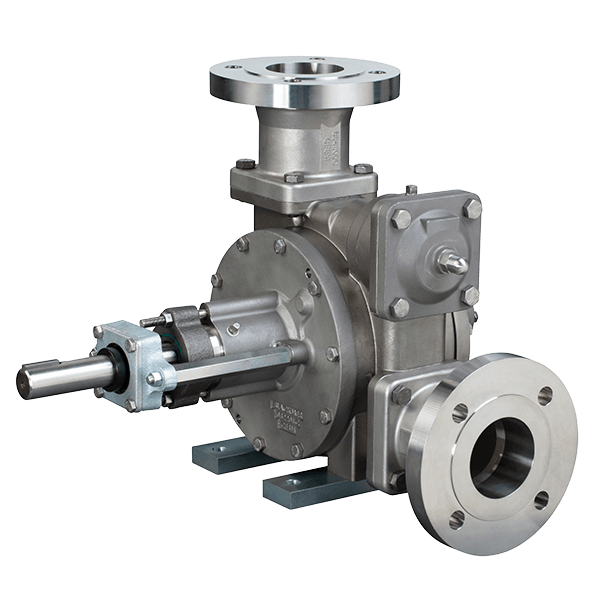

SNP3A 3 in NPT 90 - 275 gpm (341 - 1,040 L/min) 150 psi (10.3 bar) $26,723.25 140 lb (64 kg, ships with integral relief valve, standard)

Starting prices shown are for PTFE Packing (G0) seal with no heating jacket, right-hand rotation, Duravane vanes, and each model's standard flange. Select Model, Seal, and Heating Jacket above to see the price for your configuration.

Materials of Construction

Parts Material
Cylinder, Heads, Optional Relief Valve 316 Stainless Steel: ASTM A743, CF-8M

Dimensions (Pump Only)

Model L W H Approx. Weight (pump only, per Blackmer/PSG dimension sheets)
SNP1.25, SNP1.5 11-3/8 in 8 in 12-1/4 in 40 lb (18.2 kg)
SNP2 16-1/2 in 11 in 15 in 88 lb (40 kg)
SNP2.5 18-4/5 in 11-1/2 in 16-1/2 in 120 lb (54.4 kg)
SNP3A 21 in 13-3/16 in 12-1/2 in 130 lb (59 kg)

Pump-only weights above are from Blackmer's published dimension sheets. Shipping weights used for the variant options on this page (which include the relief valve and heating jacket configuration you select) are pulled from the current Blackmer price sheet and may differ slightly from the pump-only weights above.

Configuration Options (call to order)

The options below are not selectable online. To configure any of these for your order, call (262) 646-4500.

Option Values Notes
Vanes Duravane (Std, code 4); EC Laminate / extra clearance (code 6) Laminate adds $437 (SNP1.25/1.5), $327 (SNP2), $509 (SNP2.5), $545 (SNP3A)
Rotation Right-hand/CW (Std, code 1R); Left-hand/CCW (code 1L) No charge either way
Relief Valve No Relief Valve (Std, code 0, SNP1.25-SNP2.5 only); Bolt-on Relief Valve (code 1, +$669, SNP1.25-SNP2.5); Integral Relief Valve (Std on SNP3A only, no NRV option on that model) SNP3A always ships with its integral relief valve
Relief Valve Spring Stainless steel spring ranges 25-50 / 51-75 / 76-100 / 101-150 psi (by model); all $0 Call to specify your required pressure range.
O-Rings PTFE (Std, code 3/0) Only value offered on this sheet
Shaft Support Bearing No shaft support bearing (Std, code 0) Only value offered on this sheet; not available at all with the Triple Lip Cartridge Seal (K7) per Blackmer's footnote
Flanges Integral ANSI Compatible 150lb Flat Face (Std, code X, SNP1.25-SNP2.5 only); Weld Flanges (Std on SNP3A, 3", code W); ANSI Flanges (SNP3A only, +$545, code A) SNP1.25-SNP2.5 ship with the integral ANSI-compatible flange only; SNP3A is the only model with a flange choice

Unit Assemblies (Optional Drive Packages)

Blackmer also offers factory drive packages for the SNP Series, priced separately and added to the pump and motor price. Call (262) 646-4500 for full motor frame and gear ratio selection.

Drive Type Applicable Models Includes Starting Price (add to pump + motor)
DM (direct mount) SNP1.25, SNP1.5 Base, coupling, and coupling guard, ready to receive pump and motor $1,535
SK (gear-reduced) SNP1.25, SNP1.5 Base, gear reducer, couplings, and coupling guards, ready to receive pump and motor $6,290
SK (gear-reduced) SNP2, SNP2.5 Base, gear reducer, couplings, and coupling guards, ready to receive pump and motor $7,050
SK (gear-reduced) SNP3A Base, gear reducer, couplings, and coupling guards, ready to receive pump and motor $7,210

Maintenance Kits

Model Description Part Number
SNP1.25 Maintenance Kit 898944
SNP1.25 Rebuild Kit 899044
SNP1.5 Maintenance Kit 898945
SNP1.5 Rebuild Kit 899045
SNP2 Maintenance Kit 898946
SNP2 Rebuild Kit 899046
SNP2.5 Maintenance Kit 898947
SNP2.5 Rebuild Kit 899047
SNP3A Maintenance Kit 898948
SNP3A Rebuild Kit 899048

Jacketed-head kits (relevant if you order the With Heating Jacket option on SNP1.25, SNP1.5, or SNP2): Maintenance Kit 898985 (SNP1.25), 898986 (SNP1.5), 898987 (SNP2), 898988 (SNP2.5); Rebuild Kit 899085 (SNP1.25), 899086 (SNP1.5), 899087 (SNP2), 899088 (SNP2.5).

Literature

Full model-specific parts lists and dimension sheets are available from Blackmer/PSG on request; the Dimensions table above covers the pump-only envelope for each model.

Questions about a configuration not shown here, or about the optional drive packages? Call (262) 646-4500.

Our Collections

Frequently Asked Questions

What are the maintenance requirements for the SNP Series Sliding Vane Pumps?
The SNP Series Sliding Vane Pumps feature vanes that can be replaced without removing the pump from the piping system, making maintenance straightforward. Additional maintenance kits and rebuild kits are available to facilitate routine service and extended pump life.
Are the SNP Series Sliding Vane Pumps suitable for handling high-temperature liquids?
Yes, some models of the SNP Series Sliding Vane Pumps are available with heating jackets, allowing for high-temperature start-up up to 350 degrees F. This makes them suitable for handling high-viscosity or high-temperature liquids.
How do the stainless steel options benefit the performance of SNP Series Sliding Vane Pumps?
The stainless steel construction, especially with 316 stainless steel on wetted parts, enhances corrosion resistance and durability when handling aggressive or caustic liquids, extending the pump's service life and ensuring reliable operation.
