TXDI Series Sliding Vane Pumps
TXDI Series Sliding Vane Pumps - TXDI2A / C0 - Iron/FKM/Carbon/FKM / N - NPT Flanges (Std) is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
We ship in stock items same day. If it needs to be ordered we will ship it out to you the day it arrives.
TXDI Series Sliding Vane Pumps - TXDI2A / C0 - Iron/FKM/Carbon/FKM / N - NPT Flanges (Std) is backordered and will ship as soon as it is back in stock.
Description
Description

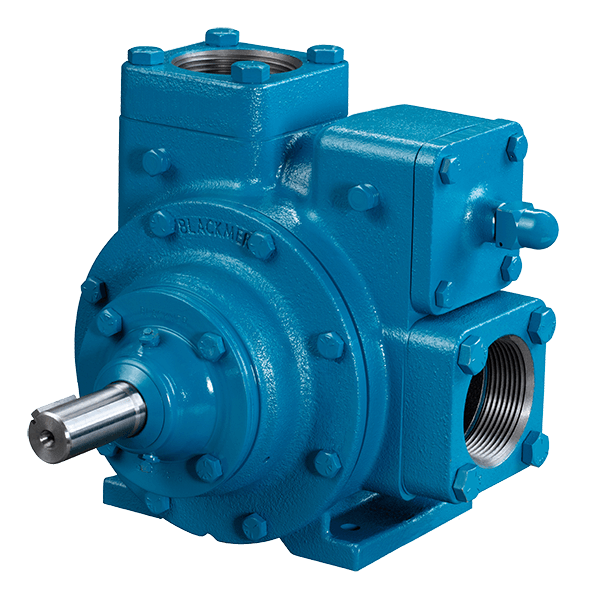

Blackmer TXDI Series sliding vane pumps are the ductile iron, inline-ported variant of the TXD platform. Where the standard TXD models feature a top outlet (outlet 90° offset from inlet), the TXDI and TXI4A models have a side outlet, with the outlet 180° offset from the inlet, an inline configuration that simplifies certain installation geometries on truck frames.
All TXDI models are built from ductile iron (ASTM A536) throughout (cylinder, heads, and relief valve cover) rather than the cast iron used in standard TXD models. They carry the same Blackmer mechanical seals, external ball bearings, double-ended drive shaft, adjustable iron relief valve, and self-adjusting Duravane vanes as the TXD series. TXDI models include a standard double-ended shaft on the 2", 2.5", and 3" versions; the TXI4A uses a single-ended right-hand (CW) shaft as standard.
Applications
Fuel oil, gasoline, jet fuel, ethanol and alcohol blends, lube oil, solvents, esters, ketones, naphtha, aromatic and glycol compounds. Designed for tanker truck unloading, transport delivery, fleet refueling, and bulk transfer where the inline port orientation simplifies plumbing.
Specifications
| Model | Nominal Flow | Shipping Wt. |
|---|---|---|
| TXDI2A | 87 gpm (329 L/min) | 74 lb (34 kg) |
| TXDI2.5A | 157 gpm (594 L/min) | 94 lb (43 kg) |
| TXDI3A | 270 gpm (1,022 L/min) | 152 lb (69 kg) |
| TXI4A | 505 gpm (1,911 L/min) | 310 lb (141 kg) |
Max differential pressure: 125 psi (8.6 bar). MAWP: 175 psi (12.1 bar). Temperature range: −25°F to 240°F (−32°C to 115°C).
Configuration Options
The options below require a phone order. Call (262) 646-4500 to specify.
| Option | Choices | Notes |
|---|---|---|
| Relief Valve | Iron (Std); Corrosion Resistant (+$115–$242 depending on model) | |
| Relief Valve Spring | Multiple ranges, 36–125 psi (all $0) | Call to specify required pressure range. |
| Rotation (TXI4A only) | Single-Ended Right-hand CW (Std); Single-Ended Left-hand CCW ($0) | TXDI2A, TXDI2.5A, TXDI3A are double-ended standard. |
Maintenance Kits
| Model(s) | Kit Type | Part Number |
|---|---|---|
| TXDI2A | Maintenance Kit, Buna-N | 898950 |
| TXDI2A | Maintenance Kit, FKM | 898956 |
| TXDI2.5A | Maintenance Kit, Buna-N | 898951 |
| TXDI2.5A | Maintenance Kit, FKM | 898957 |
| TXDI3A | Maintenance Kit, Buna-N | 898952 |
| TXDI3A | Maintenance Kit, FKM | 898958 |
| TXI4A | Maintenance Kit, Buna-N | 898953 |
| TXI4A | Maintenance Kit, FKM | 898959 |
Literature
- IOM: TX, TXD, TXDI Truck Pumps (201-A00)
- Parts List: TXDI2A
- Parts List: TXDI2.5A
- Parts List: TXDI3A
- Parts List: TXI4A
- Dimensions: TXDI2A Inline
- Dimensions: TXDI2.5A Inline
- Dimensions: TXDI3A Inline
- Dimensions: TXI4A
- Brochure: TX Series Truck-Mounted Pumps
- Materials of Construction (201-091)
Other Pumps in This Family
Blackmer's TX truck pump family also includes the TXD Series Sliding Vane Pumps, including the air-operated relief valve AVA and AVC models, the high speed TXD1200 Series Sliding Vane Pumps, and the TXH Series Sliding Vane Pumps. Call (262) 646-4500 for help selecting the right pump for your application.
KI Pumps & Systems, Inc. of Waukesha, WI is an authorized Blackmer distributor. For pricing, availability, or to specify a configuration not listed above, call (262) 646-4500.
