Description
Description

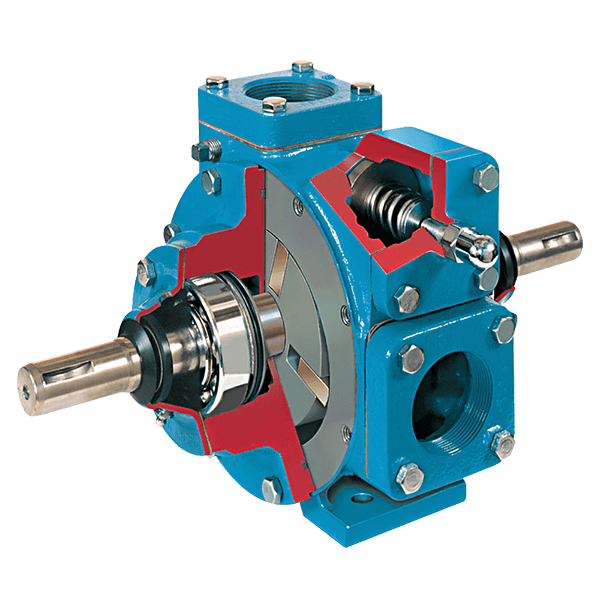

The Blackmer TXD1200 Series is a family of high-speed, cast iron sliding vane truck pumps built for fast tanker unloading, fleet refueling, and bulk transfer. Running at speeds up to 1,200 RPM, they deliver quick, quiet operation, while the sliding vane design self-adjusts for wear to hold flow rates over the life of the pump. An adjustable relief valve protects the pump against excessive pressure.
Available in 2", 2.5", and 3" port sizes with flow rates from 20 to 265 GPM (4 to 60 m³/h) and differential pressures up to 125 psi (8.6 bar).
Models and Performance
| Model | Port Size | Speed Range | Nominal Flow Range | Shipping Weight |
|---|---|---|---|---|
| TXD1220A | 2" | 700 to 1,200 RPM | 48 to 87 GPM (181 to 329 L/min) | 74 lb |
| TXD1225A | 2.5" | 700 to 1,200 RPM | 80 to 157 GPM (302 to 594 L/min) | 94 lb |
| TXD1230A | 3" | 270 to 900 RPM | 80 to 270 GPM (302 to 1,022 L/min) | 152 lb |
Shared Specifications
- Differential pressure: 125 psi (8.6 bar)
- Maximum working pressure (MAWP): 175 psi (12.1 bar)
- Temperature range: -25°F to 240°F (-32°C to 115°C)
- Viscosity range: 0.2 to 20 cP
- Primary material: cast iron
- Connection orientation: side inlet, top outlet
- Available certificates: hydrostatic test, performance test, NPSH test, material, dimensional
Features and Benefits
- Double-ended drive shaft allows either clockwise (RH) or counterclockwise (LH) rotation, and simplifies installation on 2", 2.5", and 3" models
- External roller ball bearings support the rotor from both sides, creating a stable environment for the internal mechanical seals
- Symmetrical bearing support assures even loading and wear for long life
- Internal mechanical seals allow for extended dry run and continuous operation with non-lubricating liquids
- External ball bearings are isolated from pumpage by mechanical seals to maximize bearing life and minimize contamination risk
- Adjustable relief valve protects the pump against excessive pressures
- Optional air-operated piston-style relief valve makes hose and nozzle handling easier
- Optional T-type strainers protect the pumping system from welding slag and foreign matter in the piping and tanks
- High volumetric efficiency and symmetrical bearing support mean less required horsepower than other positive displacement pumps, saving on both motor operation and electricity
- Vanes can be replaced without removing the pump from the truck
- Excellent self-priming, dry-run, high suction lift, and line-stripping capability
Applications
Transport delivery, fleet refueling, and bulk transfer of fuel oil, jet and aviation fuel, gasoline, biodiesel, ethanol and other alcohols, solvents, ester, ketone, naphtha, ether, amine, aromatics, terpene, glycol, and additives.
Standard Configuration
Every pump on this page is built with:
- Duravane vanes
- Double-ended rotation
- Blackmer single mechanical seal, iron / FKM / carbon / FKM (code C0)
- Fluorocarbon (FKM) O-rings
- Standard adjustable internal relief valve
Choose your flange connection and inlet strainer from the menus above. Everything else is available by phone, see the Configuration Options table below.
Flange and Connection Options
Flange availability varies by model. If a combination is not offered, the page will show a Call to Order message instead of a price.
| Code | Connection | Available On |
|---|---|---|
| N | NPT flanges (2" on TXD1220A, 2.5" on TXD1225A, 3" on TXD1230A), standard | All models |
| 1 | Alternate NPT flanges, 2" x 2" | TXD1225A |
| 2 | Alternate NPT flanges, 2" x 2.5" | TXD1225A |
| W | Weld flanges (2", 2.5", or 3" to match the pump) | All models |
| 4 | Victaulic flanges, 2" x 2" | TXD1220A, TXD1225A |
| 5 | Victaulic flanges, 2.5" x 2.5" | TXD1225A |
| 6 | Victaulic flanges, 2.5" x 2" | TXD1225A |
| 7 | Victaulic flanges, 3" x 2.5" | TXD1225A |
| 8 | Victaulic flanges, 3" x 3" | TXD1225A, TXD1230A |
| 9 | Victaulic flanges, 3" x 2" | TXD1225A |
| C | Gasket and cap screws only, NPT | All models |
| B | Gasket and cap screws only, weld | All models |
| X | No flanges, cap screws, or gaskets | All models |
Configuration Options
The options below are available on the TXD1200 Series but are not part of the online configuration. Call (262) 646-4500 to add any of them to your order.
| Option | Choices | Availability |
|---|---|---|
| Relief valve | Standard relief valve (included), corrosion resistant relief valve, or air-operated piston relief valve (FKM) for easier hose and nozzle handling under bypass conditions | Corrosion resistant on all models. Air-operated piston valve on TXD1225A and TXD1230A |
| Relief valve spring range | Steel springs covering 36 to 50 psi, 51 to 75 psi, 76 to 110 psi, and 111 to 125 psi. Air-operated relief valve spring covers 70 to 125 psi | 36 to 50 psi on TXD1220A only. All other steel ranges on all models. Call to specify your required pressure range |
| Additional strainers | Strainer styles beyond the pump mounted T-type offered above | All models |
| Hydraulic motor adapter kit | Adapter kit for hydraulic motor drive | All models |
Dimensions
| Model | L | W | H | Pump Weight |
|---|---|---|---|---|
| TXD1220A | 16-3/4" (425.5 mm) | 10" (254 mm) | 8-11/16" (220.6 mm) | 70 lb (32 kg) |
| TXD1225A | 18-1/4" (463.6 mm) | 10-3/4" (273.1 mm) | 9-5/8" (244.5 mm) | 94 lb (43 kg) |
| TXD1230A | 20-1/3" (515.9 mm) | 13-1/2" (342.9 mm) | 12-4/5" (325.4 mm) | 152 lb (69 kg) |
Materials of Construction
| Component | Material |
|---|---|
| Cylinder | Cast iron, ASTM A48 |
| Heads | Cast iron, ASTM A48 |
| Relief valve cover | Cast iron, ASTM A48 |
| Vanes | Duravane, -25°F to 240°F (-32°C to 115°C), 0.2 to 20 cP |
| Elastomers | FKM, -25°F to 240°F (-32°C to 115°C) |
| Seal | Blackmer single mechanical seal |
Maintenance Kits
| Model | Description | Part Number |
|---|---|---|
| TXD1220A | Maintenance Kit, FKM | 899180 |
| TXD1225A | Maintenance Kit, FKM | 899181 |
| TXD1230A | Maintenance Kit, FKM | 899182 |
Literature and Documentation
Installation and Operation Manuals
- IOM Blackmer Truck Pumps 201-D00 (TXD1220A, TXD1225A, TXD1230A)
- IOM Blackmer Truck Pumps 201-D00 (Spanish)
- IOM Blackmer Hydraulic Motor Adapter Kits 206-E00
- IOM and Parts List Blackmer Air Valve 201-F00
- IOM and Parts List Blackmer Piston Air Valve 201-G00
- IOM and Parts List Blackmer Piston Air/Relief Valve Conversion Kit 201-H00
Parts Lists
- Parts List TXD1220A 201-D02 (Spanish)
- Parts List TXD1225A 201-D03 (Spanish)
- Parts List TXD1230A 201-D04 (Spanish)
Performance Curves
Dimensional Drawings
Additional Literature
- Brochure Blackmer TX Series Truck-Mounted Sliding Vane Pumps 201-001 (A4)
- Materials of Construction Blackmer Truck Pumps 201-093
- ATEX Declaration of Conformity for Blackmer Vane Pumps, Form 617
Questions?
Call (262) 646-4500 for help selecting a model, configuring options, or checking lead times.
Other Pumps in This Family
Blackmer's TX truck pump family also includes the TXD Series Sliding Vane Pumps, including the air-operated relief valve AVA and AVC models, the TXDI Series Sliding Vane Pumps, and the TXH Series Sliding Vane Pumps. Call (262) 646-4500 for help selecting the right pump for your application.
