XL High-Speed Sliding Vane Pumps

$ 2,299.50 $ 2,555.00
Size or Model
Seal
Motor Adaptor

Delivery and Shipping

We ship in stock items same day. If it needs to be ordered we will ship it out to you the day it arrives.

If you have any questions you can reach us at (262) 646.4500 or click here

Description

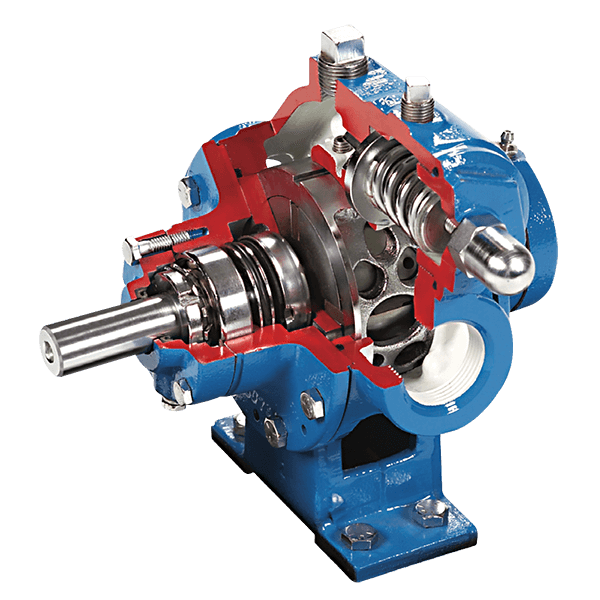

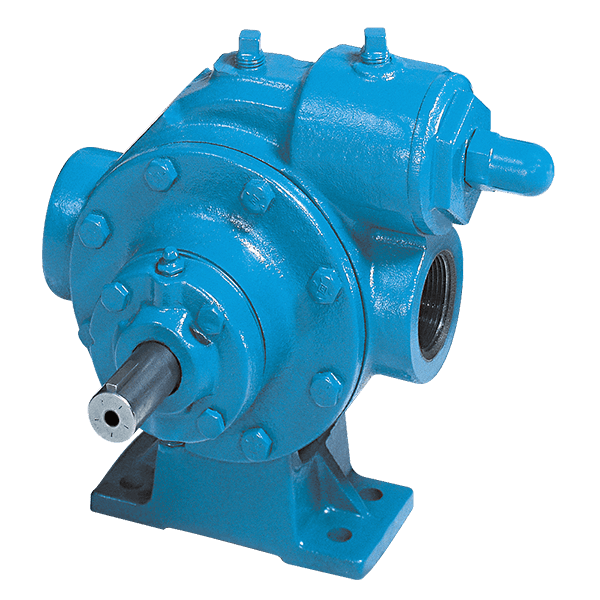

The Blackmer XL High-Speed Sliding Vane Pumps are ductile iron, motor-speed pumps built for processing, filling, and transfer applications in refineries, lube oil plants, and general industry. Replaceable vanes, liners, and end discs allow the pumping chamber to be rebuilt to like-new condition without removing the pump from the piping. The self-adjusting sliding-vane design maintains flow rates as the vanes wear, and the pumps offer excellent self-priming and dry-run capability with low maintenance and low life-cycle costs.

This series covers the 1.25" and 1.5" motor-speed models: XRL1.25A, XL1.25A, XL1.5A (foot-mounted) and XRLF1.25B, XLF1.25B, XLF1.5B (C-face motor mount).

Key Features

  • Ductile iron construction with internal relief valve
  • Blackmer mechanical seal and ball bearing construction for maximum reliability
  • Symmetrical bearing support for even loading and long service life
  • Adjustable relief valve protects the pump against excessive pressure
  • External ball bearings isolated from pumpage by the mechanical seal, maximizing bearing life
  • Easy maintenance: vanes can be replaced without removing the pump from the piping
  • High suction lift and line-stripping capability

Applications

  • Refinery applications
  • Lube oil plants
  • General industry processing
  • Filling and transfer applications

Technical Specifications

Nominal Flow Rate Range XRL(F)1.25: 4 - 17 gpm (15 - 64 L/min)
XL(F)1.25: 4 - 23 gpm (15 - 87 L/min)
XL(F)1.5: 7 - 35 gpm (35 - 132 L/min)
Differential Pressure 150 psi (10.3 bar)
Maximum Working Pressure (MAWP) 350 psi (24.1 bar)
Viscosity 0.2 - 4,250 cP
Temperature -25°F to 300°F (-32°C to 149°C)
Min/Max Speed 100 - 1,800 RPM
Connection NPT tapped ports, side inlet / side outlet
Primary Materials of Construction Ductile iron casing, heads, and relief valve cover (ASTM 536); cast iron discs, bearing covers, and liner (ASTM A48)

Choose Your Configuration

Select your pump model, seal material, and motor adaptor below. Additional options, including vane material, relief valve spring range, O-ring material, and Integrated Unit Assemblies (motor, gear reducer, baseplate, and couplings), are available by calling (262) 646-4500.

Seal Options

Code Description Price
S0 Steel / FKM / Carbon / FKM (SVCV) Standard
BA Steel / PTFE / Carbon / PTFE (SACT) +$258
Q0 Steel / Buna-N / Carbon / Buna-N (SNCN) No charge

Motor Adaptor Options

XRL1.25A, XL1.25A, and XL1.5A ship foot-mounted (less coupling). XRLF1.25B, XLF1.25B, and XLF1.5B are C-face models and require one of the footless or footed adaptor and coupling combinations below.

Code Description Applicable Models
0 Foot mounted, less coupling XRL1.25A, XL1.25A, XL1.5A
E Footless adaptor & coupling, 143-145TC / 182-184C motors XRLF1.25B, XLF1.25B, XLF1.5B
F Footless adaptor & coupling, 182-184TC / 213-215C motors XRLF1.25B, XLF1.25B, XLF1.5B
N Footed adaptor & coupling, 56C motors XRLF1.25B, XLF1.25B, XLF1.5B
H Footed adaptor & coupling, 143-145TC / 182-184C motors XRLF1.25B, XLF1.25B, XLF1.5B
W Footless adaptor & coupling, IEC 100/112 B14A face mount motors XRLF1.25B, XLF1.25B, XLF1.5B

Footless adaptors require motors with feet; footed adaptors are suggested for motors without feet.

Configuration Options (Call to Order)

The following options are available on this pump but are not selectable online. Call (262) 646-4500 to configure and order.

Category Options
Vanes Duravane (Std) or Extra Clearance Laminate (+$258)
Rotation Right-hand (CW, Std) or left-hand (CCW), viewed from the driven end
Relief Valve Internal, iron (standard on every pump in this series)
Relief Valve Spring Call to specify your required pressure range: 20-50 psi, 51-80 psi, or 81-150 psi (steel spring, no additional charge)
O-Rings (pump body and flanges) FKM (Std), Buna-N (no charge), or PTFE (+$415)
Flange NPT tapped ports (standard on every pump in this series)
Integrated Unit Assembly Factory-assembled pump, motor, baseplate, couplings, and coupling guards (Direct Mount or gear-reduced), ready for drop-in installation. Motor frame and gear ratio priced separately.

Maintenance Kits

Model(s) Description Part Number
XRL1.25, XRLF1.25 Maintenance Kit 898966
XRL1.25, XRLF1.25 Rebuild Kit 899066
XL1.25, XLF1.25 Maintenance Kit 898968
XL1.25, XLF1.25 Rebuild Kit 899068
XL1.5, XLF1.5 Maintenance Kit 898970
XL1.5, XLF1.5 Rebuild Kit 899070

Dimensions & Shipping Weight

Model L W H Pump Weight
XL1.25, XRL1.25 9-5/16 in 9 in 9-1/5 in 30 lb
XLF1.25, XRLF1.25 13 in 9-1/8 in 8 in 39 lb
XL1.5, XRL1.5 9-5/16 in 9 in 9-1/5 in 30 lb
XLF1.5, XRLF1.5 13 in 9-1/8 in 8 in 39 lb

Dimensions and pump weight are for the bare pump. Shipping weight, which includes standard packaging, is approximately 32 lb for XRL1.25A, XL1.25A, and XL1.5A, and 35 lb for XRLF1.25B, XLF1.25B, and XLF1.5B.

Literature

Questions about this pump or need help selecting the right configuration? Call (262) 646-4500.

Other Pumps in This Family

The Blackmer XL family also includes the XL Series 2-4 Inch Sliding Vane Pumps for higher flow rates. Call (262) 646-4500 for help selecting the right pump for your application.
