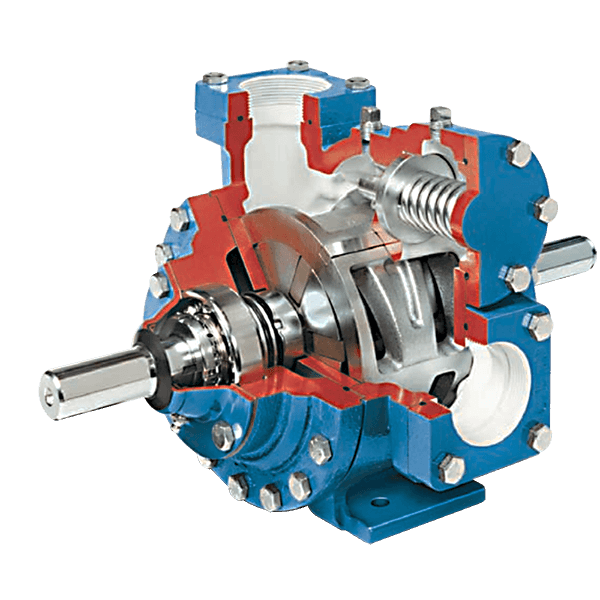

The Blackmer CRL Series 2 inch to 4 inch sliding vane pumps are ductile iron, positive displacement pumps built for the bulk transfer and recirculation of liquefied carbon dioxide. They are part of Blackmer's Cavitation Line, and their cavitation suppression liners cut the noise, vibration and wear that entrained vapors normally cause in a liquid CO2 system. Typical duty includes industrial and food processing systems, refrigeration plants, process plants, vapor recovery and transport loading and unloading.
All three models use a double-ended keyed drive shaft, so the pump can be positioned for either clockwise or counterclockwise rotation without a special build. Every pump ships with an integral adjustable relief valve, a replaceable casing liner and replaceable end discs, so the pumping chamber can be rebuilt to like-new condition rather than replaced. Silicon carbide mechanical seals isolate the external ball bearings from the pumpage, and the vanes can be changed without taking the pump out of the piping.
Models and Capacities
| Model | Port Sizes | Nominal Flow Range | Shipping Weight |
|---|---|---|---|
| CRL2 | 2 inch inlet and outlet | 18 to 72 gpm (68 to 273 L/min) | 88 lb (36 kg) |
| CRL3 | 3 inch inlet and outlet | 20 to 150 gpm (76 to 568 L/min) | 166 lb (75 kg) |
| CRL4B | 4 inch inlet, 3 inch outlet | 75 to 320 gpm (284 to 1,211 L/min) | 227 lb (103 kg) |
Specifications
| Maximum differential pressure | 100 psi (6.9 bar), all models |
|---|---|
| Maximum working pressure (MAWP) | 525 psi (36.2 bar), all models |
| Speed range | 330 to 640 rpm |
| Viscosity range | 0.2 to 4,250 cP |
| Temperature range | -30°F to 240°F (-34°C to 115°C) |
| Primary material | Ductile iron, ASTM A536 cylinder, head and relief valve cover; cast iron ASTM A48 liner and discs |
| Vanes | Laminate |
| Mechanical seal | Blackmer single mechanical seal, carbon / EPDM / silicon carbide / EPDM (CELE) |
| Elastomers | Buna-N O-rings |
| Relief valve | Integral, adjustable, steel spring |
| Port orientation | Side inlet, top outlet, 90° offset |
Flange and Connection Options
Companion flanges are selected on this page. Which flanges fit depends on the pump size, so not every choice in the menu is offered on every model.
| Selection | CRL2 | CRL3 | CRL4B |
|---|---|---|---|
| NPT Flanges | Two 2 inch NPT (standard) | Two 3 inch NPT (standard) | Not offered |
| Weld Flanges | Two 2 inch weld | Two 3 inch weld | 4 inch inlet and 3 inch discharge weld (standard) |
| Alternate NPT Flanges, 3 inch x 3 inch | Not offered | Not offered | Two 3 inch NPT |
| Alternate Weld Flanges, 3 inch x 3 inch | Not offered | Not offered | Two 3 inch weld |
| Alternate Weld Flanges, 4 inch x 4 inch | Not offered | Not offered | Two 4 inch weld |
| Cap Screws and Gaskets Only, NPT | Yes | Yes | Yes |
| Cap Screws and Gaskets Only, Weld | Yes | Yes | Yes |
| Less Flanges, Cap Screws and Gaskets | Yes | Yes | Yes |
NPT flanges are ductile iron to ASTM A536. Weld flanges are steel to ASTM A216 WCB, except the 2 inch and 3 inch weld flanges supplied on the CRL2 and CRL3, which are also available in ductile iron. Choose one of the cap screws and gaskets selections if you already have the flanges and only need the mounting hardware, or the less flanges selection if you need neither.
Shaft Rotation
Every CRL 2 inch to 4 inch pump is built with a double-ended keyed shaft as standard, which lets you drive it from either end and set it up for clockwise or counterclockwise rotation on site. The CRL2 is also offered with a single-end keyed shaft in a fixed hand, right hand (CW) or left hand (CCW), at no additional cost. Rotation is described looking at the pump from the driven side: right hand means the inlet is on the right, left hand means the inlet is on the left. The CRL3 and CRL4B are supplied with the double-ended shaft only.
Standard Configuration
The following are fixed on every CRL2, CRL3 and CRL4B and are included in the price shown.
| Item | Supplied |
|---|---|
| Vanes | Laminate |
| Shaft | Double-ended keyed (single-end available on CRL2, see above) |
| Mechanical seal | Carbon / EPDM / silicon carbide / EPDM (CELE) |
| Relief valve | Integral |
| Relief valve spring | Steel |
| O-rings | Buna-N |
Drive Packages and Unit Assemblies
This page sells the bare pump. Blackmer also builds the CRL 2 inch to 4 inch pumps into complete drive packages, which are quoted separately. Call (262) 646-4500 to specify any of the following.
| Option | Models | What It Includes |
|---|---|---|
| SK helical gear reducer | CRL2 | SK771.1Z reducer in ratios from 2.15:1 to 5.41:1 for IEC100-112, 140TC, 180TC, 210TC and 215C motor frames. Additional ratios of 6.23, 7.69, 8.5, 10.3 and 13.1 are available on request. |
| Base mounted unit assembly | CRL2 | BaseTek or bent steel baseplate, gear reducer, couplings and coupling guards, ready to receive pump and motor, for 145TC through 215TC frames. |
| Integrated SK unit assembly | CRL2, CRL3, CRL4B | Base, gear reducer, couplings and coupling guards. SK 571.1-W on the CRL2, SK 771.1-W on the CRL3, SK 52-W on the CRL4B, in ratios from 2.78:1 to 9.51:1. Supplied less pump and motor. |
| V-belt drive unit assembly | CRL2, CRL3, CRL4B | Base, pump and motor sheaves and hubs, V-belts and steel guard, in ratios from 2.66:1 to 5.37:1 for 184T through 284T frames. Supplied less pump and motor. |
| Hydraulic motor adapter kit | CRL4B | SAE A flange adapter, coupling, key, gasket and hardware, part number 892037. |
| Alternate drives | All models | Power take-off and engine driver arrangements. |
Dimensions
Approximate bare pump dimensions and pump weight as published by Blackmer. Pump weight is lighter than the shipping weight shown in the Models and Capacities table above, which includes packaging.
| Model | Length | Width | Height | Approx. Pump Weight |
|---|---|---|---|---|
| CRL2 | 16-15/16 in (430.2 mm) | 9-2/3 in (246.1 mm) | 10 in (254 mm) | 85 lb (38.6 kg) |
| CRL3 | 20-3/8 in (517.5 mm) | 13-1/4 in (336.6 mm) | 13-3/8 in (339.7 mm) | 160 lb (72.6 kg) |
| CRL4B | 20-2/3 in (525.5 mm) | 16-15/16 in (430.2 mm) | 15-4/9 in (392.2 mm) | 205 lb (93 kg) |
Maintenance Kits
Maintenance kits carry the wear parts for a routine service. Rebuild kits add the parts needed to return the pumping chamber to like-new condition. CRL3-OE1 and CRL4B-OE1 are alternate build designations, so check the nameplate on your pump before ordering.
| Model | Maintenance Kit | Rebuild Kit |
|---|---|---|
| CRL2 | 898905 | 899005 |
| CRL3 | 898906 | 899006 |
| CRL3-OE1 | 899219 | 899119 |
| CRL4B | 898907 | 899007 |
| CRL4B-OE1 | 899131 | Call to Order (262) 646-4500 |
Replacement Parts
Individual wear and service parts are stocked for all three sizes, so a single vane or o-ring can be ordered without buying a whole kit.
| Part | CRL2 | CRL3 | CRL4B |
|---|---|---|---|
| Vane, laminate | 091427 | 095109 | 092026 |
| Mechanical seal assembly (CELE) | Call to Order (262) 646-4500 | 335132 | 332059 |
| Rotor and shaft assembly | 264445 or 264443 | 265148 | 262041 |
| Casing | 014405 | 015127 | 012019 |
| Head | 034416 | 035128 | 032041 |
| Casing liner | 184405 | 185111 | 182000 |
| Disc | 064412 | 065112 | 062039 |
| Ball bearing | 903156 | 903172 | 903172 |
| Bearing cover gasket | 383940 | 385125 | 385125 |
| Head o-ring | 702022 | 702041 | 702039 |
| Push rod | 123905 | 125105 | 122009 |
| Relief valve | 454405 | Call to Order (262) 646-4500 | Call to Order (262) 646-4500 |
| Relief valve spring | 471423 | 475135 | 472039 |
| Shaft end protector | 341601 | 341801 | 341801 |
| NPT companion flange | 654401 | 655112 | 652012 |
| Weld companion flange | 654405 | 655102 | 652007 (3 inch) or 652005 (4 inch) |
| Bearing locknut tool | 903091 | 903091 | 903092 |
| Hydraulic motor adapter kit | Call to Order (262) 646-4500 | Call to Order (262) 646-4500 | 892037 |
The mechanical seal assembly is supplied only as a complete assembly. For any part not listed here, call to order at (262) 646-4500.
Documentation
- Installation and Operation Manual 701-B00, CRL2 and CRL3
- Installation and Operation Manual 701-C00, CRL4B and CRL4B-OE1
- Parts List 701-B01, CRL2 and CRL3
- Parts List 701-C01, CRL4B
- Brochure 701-001, CRL Series Liquefied CO2 Vane Pumps
- Materials of Construction 701-091
- Performance Curves 701-021
- Dimensional Drawing 701-105, CRL2
- Dimensional Drawing 701-107, CRL3
- Dimensional Drawing 701-109, CRL4B
- V-Belt Drive Manual and Parts List 701-E00, CRL2
- V-Belt Drive Manual and Parts List 701-F00, CRL3
- V-Belt Drive Manual and Parts List 701-G00, CRL4B
- Hydraulic Motor Adapter Kit Manual 206-E00
- Integrated Unit Assembly Parts List 701-H11, CRL2
- Integrated Unit Assembly Parts List 701-H12, CRL3
- Integrated Unit Assembly Parts List 701-H13, CRL4
- Alignment Free Accessories Parts List 011-045
- Brochure 011-050, Blackmer Integrated Unit Assemblies
- Spec Sheet 109-002, Nord Gearbox Ratings for Integrated Unit Assemblies
- ATEX Declaration of Conformity, Form 617
Smaller CRL Pumps
If your flow requirement is below the CRL2's range, the CRL Series High-Speed pumps cover 1.25 inch and 1.5 inch port sizes in the same liquid CO2 service. Call (262) 646-4500 and we will size the right pump for your system.
We are an authorized Blackmer distributor and stock CRL pumps, maintenance kits and replacement parts. For help selecting a pump, a drive package or a gear ratio, or to order any configuration not shown on this page, call us at (262) 646-4500.
