Description
Description
The Blackmer HXL Series is a line of Heavy Duty ductile iron sliding vane pumps built for refineries, terminal operations, and barge- or ship-loading applications. All models are constructed of ductile iron (ASTM 536), which withstands sudden thermal shock and stress well beyond the capabilities of cast iron, and are fitted with replaceable casing liners and end discs that allow easy rebuilding of the pumping chamber without removing the pump from the piping. Models are available in 6-, 8-, and 10-in ANSI flanged port sizes with maximum rated capacities of 755, 1,200, and 2,080 gpm (171, 273, 472 m3/h) respectively. The HXLJ8G is the jacketed version of the 8-in model, adding heated heads for high-viscosity and high-temperature service. Standard elastomers are FKM O-rings, and every pump ships with Blackmer's internal relief valve, already included in the prices shown above.
Choose Your Model
HXL6G
The HXL6G is the smallest model in the series, a 6-in ANSI flanged pump rated for a nominal flow of 90 to 750 gpm (341 to 2,839 L/min). It ships at approximately 840 lb including the internal relief valve. Seal type and flange connection are both selectable above; other options ship in Blackmer's standard configuration unless you call in.
HXL8G

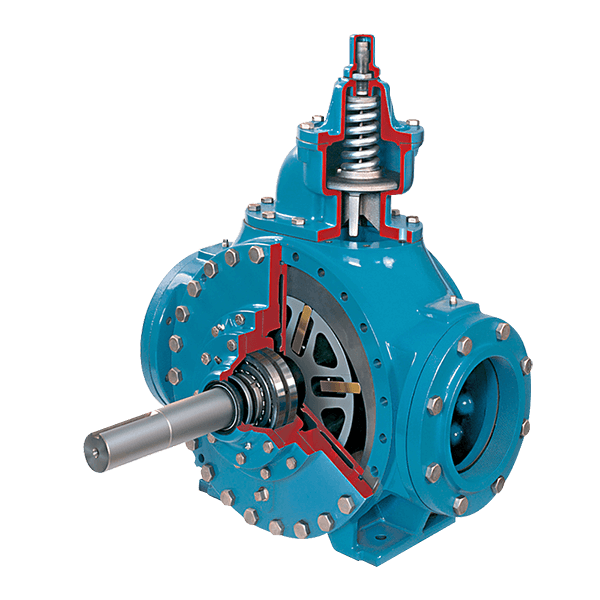

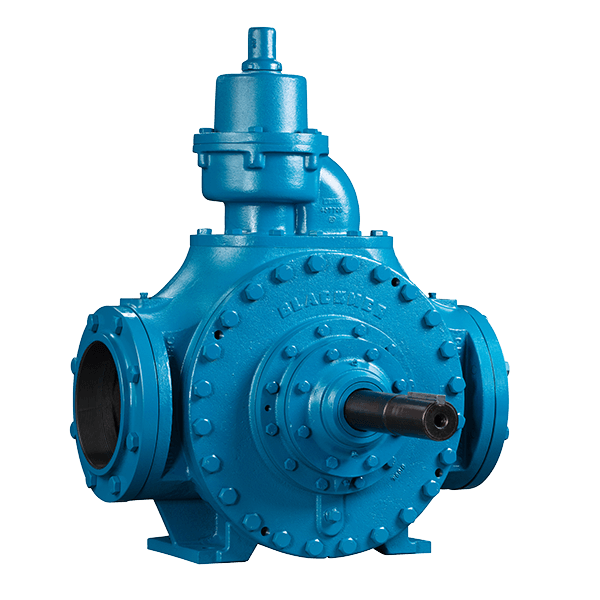

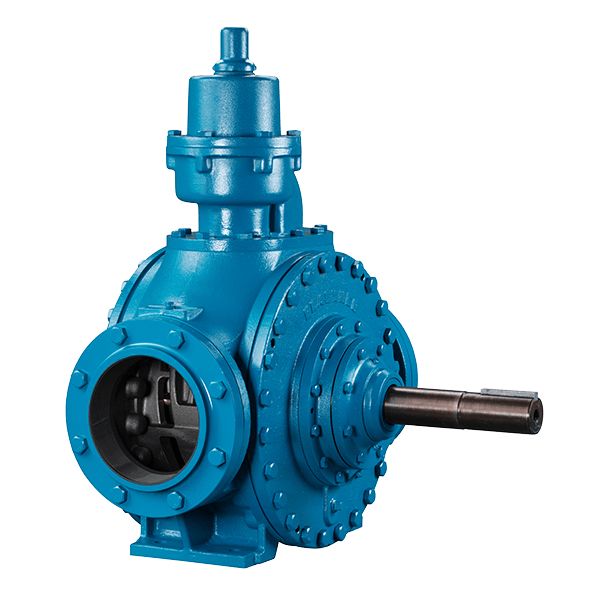

The HXL8G is the 8-in model, rated for a nominal flow of 145 to 1,190 gpm (549 to 4,505 L/min). It ships at approximately 1,100 lb including the internal relief valve. Seal type and flange connection are both selectable above.
HXLJ8G
The HXLJ8G is the jacketed version of the 8-in model, adding heated heads for high-viscosity and high-temperature service; it shares the same 145 to 1,190 gpm (549 to 4,505 L/min) flow range as the HXL8G. It ships at approximately 1,260 lb including the internal relief valve. This model ships with the Bronze seal (AC) only, Blackmer does not offer the Carbon seal (AA) on the jacketed head casting; flange connection is still selectable above.
HXL10E
The HXL10E is the largest and highest capacity model in the series, a 10-in ANSI flanged pump rated for a nominal flow of 430 to 2,080 gpm (1,628 to 7,874 L/min). It ships at approximately 2,800 lb including the internal relief valve. Seal type is selectable above; this model ships with the Integral ANSI Flange only; Blackmer does not offer the NPT companion flange or capscrews-and-gasket-only options on this size.
Configuration Options
Seal type and flange connection are selectable right on this page using the dropdowns above; any change to the base list price shows automatically. Vane material, rotation, relief valve type (except on HXL10E, see below), relief valve spring range, and O-ring elastomer are not selectable online because of catalog system limits and Shopify's 3-option cap; every pump ships in Blackmer's standard configuration for those unless you call us at (262) 646-4500 with the code you need and we will quote and build the order for you.
| Option | Code | HXL6G | HXL8G | HXLJ8G | HXL10E |
|---|---|---|---|---|---|
| Vane: Laminate, extra clearance | 6 | +$219 | +$691 | +$691 | $0 |
| Vane: Bronze, extra clearance | 8 | +$256 | +$727 | +$727 | $0 |
| Vane: Iron, extra clearance | 9 | N/A | $0 | $0 | N/A |
| Rotation: Right-hand (CW), standard | 1R | Std | Std | N/A | Std |
| Rotation: Left-hand (CCW) | 1L | $0 | N/A | $0 (standard for this model) | $0 |
| Rotation: Extra Clearance, Right-hand (CW) | 8R | +$474 | +$515 | +$515 | +$919 |
| Rotation: Extra Clearance, Left-hand (CCW) | 8L | +$474 | +$515 | +$515 | +$919 |
| O-Ring: Fluorocarbon (FKM), standard | 2 | Std | Std | Std | Std |
Relief valve: Blackmer does not offer a no-relief-valve option on any HXL model, so the internal relief valve is already built into every price shown above (adding $2,970 to base on HXL6G, HXL8G, and HXLJ8G, and $8,290 to base on HXL10E). HXL6G, HXL8G, and HXLJ8G ship with the internal relief valve only, no other type is available. HXL10E offers two additional relief valve types by special order, both call-in only: an external relief valve at $7,200 over base (actually cheaper than the internal valve used in the price above) and an internal relief valve with manual bypass valve assembly at $15,700 over base.
Relief valve spring range is a no-cost option, shown in the range used for the prices above; other ranges are available per model by request.
| Model | Range Used Above | Other Available Ranges |
|---|---|---|
| HXL6G | 46-80 psi (code 3), $0 | 81-125 psi (code H), +$658 |
| HXL8G | 51-80 psi (code 3), $0 | 81-100 psi (code 5), $0; 101-150 psi (code K), +$762 |
| HXLJ8G | 51-80 psi (code 3), $0 | 81-100 psi (code 5), $0; 101-150 psi (code K), +$762 |
| HXL10E | 51-100 psi (code 4), $0 | 101-150 psi (code 7), $0 |
Seal choices, selectable in the dropdown above:
| Option | Code | HXL6G | HXL8G | HXLJ8G | HXL10E |
|---|---|---|---|---|---|
| Seal: Ni-Resist/FKM/Carbon/FKM (AA), standard | AA | Std | Std | N/A | Std |
| Seal: Ni-Resist/FKM/Bronze/FKM (AC) | AC | +$828 | +$1,410 | Std (only seal offered) | +$1,720 |
Flange choices, selectable in the dropdown above:
| Option | Code | HXL6G | HXL8G | HXLJ8G | HXL10E |
|---|---|---|---|---|---|
| Flange: Integral ANSI FF Flange Connections, standard | X | Std | Std | Std | Std (only flange offered) |
| Flange: NPT Companion Flange, Capscrews & Gaskets | N | +$437 (6 in) | +$875 (8 in) | +$875 (8 in) | N/A |
| Flange: Gasket & Capscrews Only, NPT | C | $0 | $0 | $0 | N/A |
Integrated Unit Assemblies and Gear Reducers
Every price above is for the base pump only. Blackmer also offers fully engineered Integrated Unit Assemblies that pair an HXL (or HXLJ) pump with a gearbox, motor, baseplate, and coupling safety covers as a pre-aligned, drop-in package requiring no field alignment. Pricing is by pump model, gearbox drive ratio, and motor frame size:
| Pump Model(s) | Gearbox | Ratio Range | Compatible Motor Frames | Gearbox + Frame Adder |
|---|---|---|---|---|
| HXL6G | SK 62-W | 6.35:1 to 11.6:1 (5 ratios) | 284T/286T, 324T/326T, 364T/365T | $23,370 |
| HXL8G, HXLJ8G | SK 72-W | 5.60:1 to 10.84:1 (6 ratios) | 284T/286T, 324T/326T, 364T/365T | $26,670 to $27,830 (varies by ratio) |
| HXL10E | SK 92-W | 7.78:1 to 16.47:1 (5 ratios) | 364T/365T, 404T/405T, 444T/445T/447T | $38,030 |
This is dozens of ratio and motor frame combinations per model, too many to list as web options; call us at (262) 646-4500 with your ratio and motor frame requirements and we will quote the complete assembly.
Features and Benefits
- Ductile-iron construction with bolt-on, internal relief valve
- Internal mechanical seals run at reduced speeds, allowing extended dry run without failure and continuous operation with non-lubricating liquids
- Replaceable casing liners and end discs allow easy rebuilding of the pumping chamber to like-new condition without removing the pump from the piping
- High volumetric efficiency and symmetrical bearing support mean less required horsepower than other positive displacement pumps, saving on motor operation and electricity
- Blackmer mechanical seal and ball bearing construction provide maximum reliability
- Symmetrical bearing support assures even loading and wear for long life
- Adjustable relief valve protects the pump against excessive pressures
- External ball bearings are isolated from pumpage by mechanical seals, maximizing bearing life and minimizing contamination risk
- Sliding-vane design self-adjusts for wear to maintain flow rates over the life of the pump
- Excellent self-priming and dry-run capability, with high suction lift and line-stripping capability
- Vanes can be replaced without removing the pump from the piping system, keeping maintenance simple and life-cycle costs low
Applications
HXL Series pumps are used in refineries, terminal operations, and barge- or ship-loading applications to transfer crude oils and Bunker C, HFO (heavy fuel oil), waste oils, fertilizers, greases, lube oils, molasses, and asphalt.
Performance and Specifications
| Specification | Detail |
|---|---|
| Nominal Flow Rate Range | HXL6G: 90-750 gpm (341-2,839 L/min) HXL8G, HXLJ8G: 145-1,190 gpm (549-4,505 L/min) HXL10E: 430-2,080 gpm (1,628-7,874 L/min) |
| Differential Pressure | HXL6G: 125 psi (8.6 bar) HXL8G, HXLJ8G, HXL10E: 150 psi (10.3 bar) |
| Maximum Working Pressure (MAWP) | HXL6G: 150 psi (10.3 bar) HXL8G, HXLJ8G, HXL10E: 250 psi (17.2 bar) |
| Min/Max Speed | HXL6G, HXL8G, HXLJ8G: 45-350 rpm HXL10E: 45-230 rpm |
| Viscosity Range | 0.2-22,000 cSt |
| Temperature Range | -25°F to 400°F (-32°C to 204°C) |
| Primary Materials | Ductile Iron (ASTM 536) |
| Connection Orientation | Side Inlet / Side Outlet |
| Vane Materials | EC Laminate, Bronze, Iron (see Configuration Options) |
Dimensions
Dimensions and pump weight below are for the pump only, as listed on Blackmer's dimensional drawings. Shipping weights are listed under each model in the Choose Your Model section above (they include the internal relief valve, which ships standard) and should be used for freight purposes; the two figures should never be mixed.
| Model | L | W | H | Pump Weight |
|---|---|---|---|---|
| HXL6G | 31-2/3 in (804.9 mm) | 23-3/16 in (714.7 mm) | 34-1/2 in (876.3 mm) | 707 lb (320.6 kg) |
| HXL8G | 32-5/8 in (828.7 mm) | 27-9/16 in (700.1 mm) | 36-7/8 in (936.6 mm) | 1,010 lb (458 kg) |
| HXLJ8G | 32-5/8 in (828.7 mm) | 27-9/16 in (700.1 mm) | 36-7/8 in (936.6 mm) | 1,010 lb (458 kg) |
| HXL10E | 41-1/16 in (1,043 mm) | 36-3/8 in (923.9 mm) | 44-1/3 in (1,125.5 mm) | 2,610 lb (1,184 kg) |
Materials of Construction
Blackmer's published materials-of-construction table for this series lists only the pressure-containing parts:
| Part | Material |
|---|---|
| Cylinder, Heads, Bypass Valve | Ductile Iron (ASTM 536) |
For the full parts breakdown, see the Materials of Construction PDF linked below.
Maintenance and Rebuild Kits
HXL6G
Maintenance Kit — Call to Order (262) 646-4500
899012 - Rebuild Kit
HXL8G
898913 - Maintenance Kit
899013 - Rebuild Kit
HXLJ8G
898914 - Maintenance Kit
899014 - Rebuild Kit
HXL10E
898915 - Maintenance Kit
899015 - Rebuild Kit
Need a different part? Call us at (262) 646-4500 and we will look it up by serial number.
Manufacturer Literature
Installation Manuals
IOM Blackmer Power Pumps HXL Series 102-A00
IOM Blackmer Power Pumps HXL Series 102-A00 (ES)
Integrated Unit Assembly
Brochure Blackmer Integrated Unit Assemblies 011-050
Spec Sheet Nord Gearbox Ratings for Blackmer Integrated Unit Assemblies 109-002
Parts List Integrated Unit Assembly HXL6 102-H11
Parts List Integrated Unit Assembly HXL8 102-H12
Parts List Integrated Unit Assembly HXL10 102-H13
Dimensions Integrated Unit Assembly HXL6 102-104
Dimensions Integrated Unit Assembly HXL8 102-106
Dimensions Integrated Unit Assembly HXL10 102-108
Parts Lists
Parts List Blackmer Power Pump Model 102-A01 (HXL6G)
Parts List Blackmer Power Pumps 102-A01 (ES)
Parts List Blackmer Power Pump Models HXL8G, HXLJ8G 102-A02
Parts List Blackmer Power Pump Models HXL8G, HXLJ8G 102-A02 (ES)
Parts List Blackmer Power Pump Model HXL10E 102-A04
Parts List Blackmer Power Pumps 102-A04 (ES)
Brochures
Brochure Blackmer HXL Series Sliding Vane Pumps 102-001
Brochure Blackmer Series HXL Bombas 102-001 (ES)
Brochure Blackmer HXL Series Sliding Vane Pumps 102-001 (FR)
Brochure Blackmer HXL Series 102-001 (RU)
Materials of Construction
MOC Blackmer Power Pump Models HXL6G, HXL8G, HXLJ8G, HXL10E 102-091
Dimensions
Dimensions Blackmer Pump Models HXL6G, HXL8G 102-103
Dimensions Blackmer Pump Model HXLJ8G 102-105
Dimensions Blackmer Pump Model HXL10E 102-107
Performance Curves
Curves Blackmer Power Pump Model HXL6 102-021
Curves Blackmer Power Pump Models HXL8, HXLJ8 102-023
Curves Blackmer Power Pump Model HXL10 102-025
Certifications
Certification - ATEX Declaration of Conformity for Blackmer Vane Pumps (Addendum to IOM) FORM 617
