LG1 Series Sliding Vane Pumps
LG1 Series Sliding Vane Pumps - LGF1E / Right Hand (CW) / Footless Adaptor and Coupling, 143-145TC and 184C Frame is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
We ship in stock items same day. If it needs to be ordered we will ship it out to you the day it arrives.
LG1 Series Sliding Vane Pumps
LG1 Series Sliding Vane Pumps - LGF1E / Right Hand (CW) / Footless Adaptor and Coupling, 143-145TC and 184C Frame is backordered and will ship as soon as it is back in stock.
Description
Description
Blackmer LG1 Series Sliding Vane Pumps are ductile iron, motor speed transfer pumps built exclusively for propane, LPG, butane and anhydrous ammonia service. With a 1 inch NPT port and a small footprint, the LG1 has been the industry standard pump for LPG dispensers for more than 50 years, with over 50,000 units sold. Every model is Underwriters Laboratory listed for LP-Gas and anhydrous ammonia, and the replaceable casing and head let the pumping chamber be rebuilt to like new condition rather than replaced.
Models and Capacities
The letters in the model designation tell you how the pump mounts and how much it flows. A B model carries a bracket for mounting to a conventional base. An F model carries an integral bracket and coupling for direct flange mounting to a NEMA C-face motor, and its pump body rotates to simplify hookup to your piping. A P in the designation means roughly 50 percent more flow.
| Model | Mounting Style | Nominal Flow Rate | Shipping Weight |
|---|---|---|---|

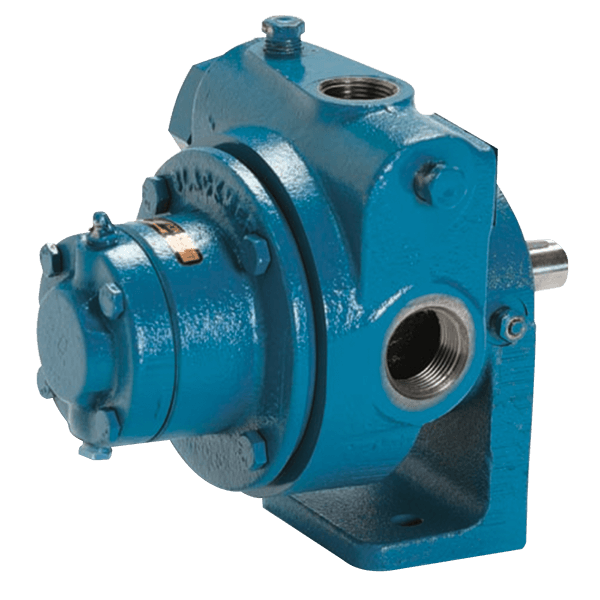

| LGB1E | Bracket for conventional base mounting | 5 to 8 gpm (18 to 30 L/min) | 24 lb (11 kg) |
| LGB1PE | Bracket for conventional base mounting | 6 to 13 gpm (22 to 49 L/min) | 24 lb (11 kg) |

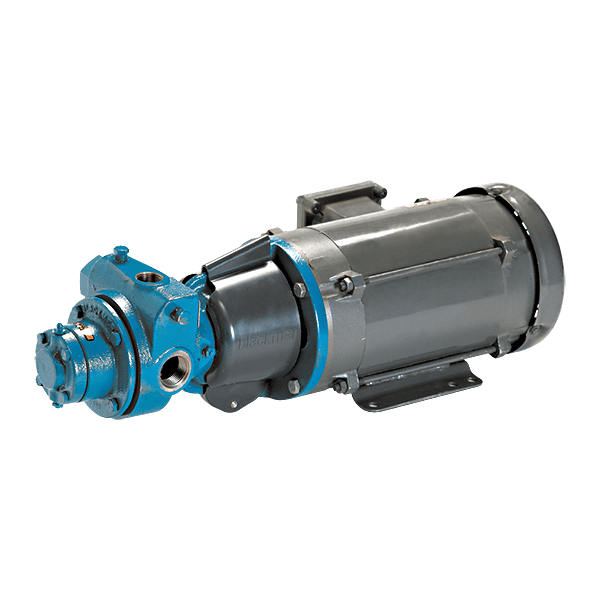

| LGF1E | Integral bracket and coupling, NEMA C-face | 5 to 8 gpm (18 to 30 L/min) | 32 lb (15 kg) |
| LGF1PE | Integral bracket and coupling, NEMA C-face | 6 to 13 gpm (22 to 49 L/min) | 32 lb (15 kg) |
Rotation and Motor Adaptor
Rotation is a no cost choice on every model. Right hand (clockwise) places the inlet to the right when you look at the pump from the driven side, and left hand (counterclockwise) places it to the left. Choose the direction that matches your driver.
Motor adaptor selection follows the mounting style. LGB1E and LGB1PE are supplied foot mounted, less coupling. LGF1E and LGF1PE take an adaptor and coupling matched to your motor frame, and all four adaptor choices are no cost options:
- Footless adaptor and coupling, 56C frame motors. A motor with feet is required.
- Footless adaptor and coupling, 143-145TC and 184C frame motors. A motor with feet is required.
- Footed adaptor and coupling, 56C frame motors. A motor without feet is suggested.
- Footed adaptor and coupling, 143-145TC and 184C frame motors. A motor without feet is suggested.
Specifications
| Specification | Value |
|---|---|
| Nominal flow rate range | 5 to 13 gpm (18 to 49 L/min), depending on model |
| Differential pressure | 125 psi (8.6 bar) |
| Maximum working pressure | 350 psi (24.1 bar) |
| Speed range | 1,450 to 1,750 rpm |
| Viscosity range | 0.2 to 10 cP |
| Temperature range | -25°F to 240°F (-32°C to 115°C) |
| Ports | 1 inch NPT tapped, 180° inline porting |
| Connection orientation | Side inlet, side outlet |
| Vanes | Duravane, six vane design |
| Elastomers | Buna-N |
| Sealing | Blackmer single mechanical seal, developed for non-lubricating liquids |
| Relief valve | Integral combination valve, acts as both a back to tank bypass and an internal safety valve |
| Bearings | External ball bearings, isolated from pumpage by the mechanical seals |
| Certificates available | Hydrostatic test, performance test, NPSH test, material, dimensional |
Dimensions
| Model | L | W | H | Pump Weight |
|---|---|---|---|---|
| LGB1E, LGB1PE | 8-1/5 in (207.9 mm) | 7 in (177.8 mm) | 7-1/3 in (185.7 mm) | 19 lb (8.6 kg) |
| LGF1E, LGF1PE | 5-1/5 in (131.8 mm) | 7-1/4 in (184.2 mm) | 7-1/8 in (181 mm) | 39 lb (17.7 kg) |
The figures above are bare pump weights from Blackmer's dimensional drawings. Shipping weights, which include packaging, are listed in the Models and Capacities table.
Materials of Construction
| Part | Material |
|---|---|
| Cylinder and head | Ductile iron, ASTM 536 |
| Bearing cover | Cast iron, ASTM A48 |
| Bearing locknut and lock washer | Steel |
| Vanes | Duravane |
| O-rings and seal elastomers | Buna-N |
Standard Configuration
Every LG1 is built to the single standard configuration below. These items are fixed on this pump line, and they are listed here so you can see exactly what is included. For anything outside this configuration, call (262) 646-4500.
| Item | Supplied As Standard |
|---|---|
| Vanes | Duravane, six vane |
| Mechanical seal | Steel HD / Buna-N / carbon / Buna-N (SNCN) |
| Relief valve | Integral |
| Relief valve spring | Steel |
| O-rings | Buna-N |
| Connections | 1 inch tapped ports |
Unit Assemblies
LGB1E and LGB1PE pumps can be supplied as a direct mount unit assembly that includes the base, coupling and coupling guard, ready to receive the pump and motor. Unit assemblies are offered for 56, 143T, 145T, 182T, 184T and 184 motor frames, with the pump and motor priced separately. They are not offered for LGF1E or LGF1PE, which flange mount directly to a NEMA C-face motor and need no separate base. Call to Order (262) 646-4500.
Maintenance Kits
| Kit | Fits | Part Number |
|---|---|---|
| Maintenance Kit, six vane | LGB1E, LGB1PE, LGF1E, LGF1PE | 898994 |
| Relief Valve Kit | LGB1E, LGB1PE, LGF1E, LGF1PE | 899094 |
Not sure which kit your pump takes? Call (262) 646-4500 with your model and serial number and we will confirm it for you.
Replacement Parts
| Part | Fits | Part Number |
|---|---|---|
| Vane, Duravane (six per pump) | All models | 092913 |
| Mechanical seal assembly (two per pump) | All models | 332920 |
| Head | All models | 032905 |
| Cylinder | LGB1E, LGF1E | 022914 |
| Cylinder | LGB1PE, LGF1PE | 022915 |
| Ball bearing (two per pump) | All models | 903405 |
| Relief valve | All models | 452901 |
| Relief valve spring | All models | 472901 |
| Head o-ring | All models | 711941 |
| Relief valve cover o-ring | All models | 701965 |
| Bearing cover gasket | All models | 383075 |
| Locknut tool | All models | 903090 |
Call to Order (262) 646-4500 for any part not listed here.
Literature
- Installation, Operation and Maintenance Manual 501-A00
- Parts List 501-A01
- Dimensional Drawing 501-105, LGB1E and LGB1PE
- Dimensional Drawing 501-101, LGF1E and LGF1PE
- Materials of Construction 501-091
- Performance Curves 501-021a, LGB1 and LGF1
- Performance Curves 501-021b, LGB1P and LGF1P
- Performance Curves 501-021, LG, LGL and TLGL Series
- ATEX Declaration of Conformity, Form 617
- LG1 Sliding Vane Pumps Brochure 501-002
- Liquefied Gas Pumps and Compressors Brochure 501-001
Blackmer Pumps is an authorized Blackmer distributor. If you would like help sizing an LG1 for a dispenser, a cylinder filling station or a small vaporizer, matching a motor frame to the right adaptor, or quoting a complete unit assembly, call us at (262) 646-4500.
Other Pumps in This Family
Blackmer's LP-gas pump family also includes the LGL Series 1.25 inch to 1.5 inch Ductile Iron Pumps, the LGL Series 2 inch to 4 inch Ductile Iron Pumps, and the LGLH2A Autogas High Pressure Sliding Vane Pumps. Call (262) 646-4500 for help selecting the right pump for your application.
